Product Description
Product Description
Product Description
Product Application

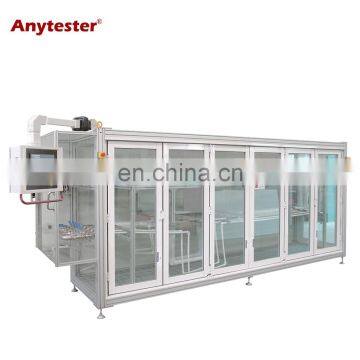

AT473 Thermal Cycling Tester is designed according ISO and ASTM standard requirement, it's mainly used to check the leakage status of composite pipe & fittings when subjected to specify cycling times under specified internal pressure load. It's widely used in plastic pipe manufacture factory and some Labs.
SPECIFICATIONS FOR AT473 THERMAL CYCLING TESTER
|
Max. pressure
| 1.6MPa
|
Pressure control accuracy
| ±0.05MPa
|
Number of test stations
| 6, can be customized
|
Alternation time between hot water and cold water
| ≤1 min
|
Cycle period
| 300 ~ 1200s
|
Number of cycles
| 1 ~ 10,0000 adjustable
|
Cold water temperature range
| 15℃ ~ R.T adjustable
|
Hot water temperature range
| R.T ~ 98℃
|
Water flow accuracy
| 0.01m/s
|
Dimensions
| 4600×2900×2000mm
|
Main Features
1) High temperature and high pressure only exist in the sample and short piping, that all the electric parts in circulation line work at normal pressure to attain a long service life.
2) Testing control and monitoring of individually station takes over PLC and touch screen terminal.
3) Individual circulation time, flow rate and pressure can be selected.
4) Several reliable safeguard, liquid level measuring devices, emergency stop switch and cord switch ensure the tester to be out of action in time if the test fails or piping system bursts. Doors shall be locked during testing period.
5) Pre-stress system was introduced to apply the initial tensile stress. This system is optional.
Certifications
Detailed Images
Machine Parts
Name: Frame
Material: Aluminum
Original: China
High quality aluminum frame make the machine have good appearance, also the aluminum is durable and strong enough to bear large pre-tension.
Main Features
Name: Pump
Brand: GRUNDFOS
Original: Demark
Import high quality pump make the cold water and hot water cycling more smooth and steady, it can bear long continue working.
Machine Parts
Name: Pressure control system
Brand: Shanghia Yibiao
Original: China
The machine equipped with both 0.001MPa digital pressure and dial pressure gauge, you can calibrate the pressure when it's needed.
Main Features
Name: Software
Brand: HY TECH
Language: Chinese, English and French
Thermal Cycling Tester has real-time display test date including time, temperature, pressure etc. It also can store history date to check on PC. The software is multi-function to supply water autumnally when the tank is lack of water. It can stop work when leakage rise.
Our Service
Pre-Sales Service
* Inquiry and consulting support available by email, skype and wechat etc.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Free charge training service available at customer side.
Packing & Delivery
Packaging
|
Case No.
| 4
|
Weight
| 3.3T
|
Packaging Details
| This Thermal Cycling Tester and accessories are totally packed in four export wooden case with special reinforcement device to protect the machine from damage. The total package size is around 30CBM.
|
