Solventless Laminating Machine 500m Speed

Product Description

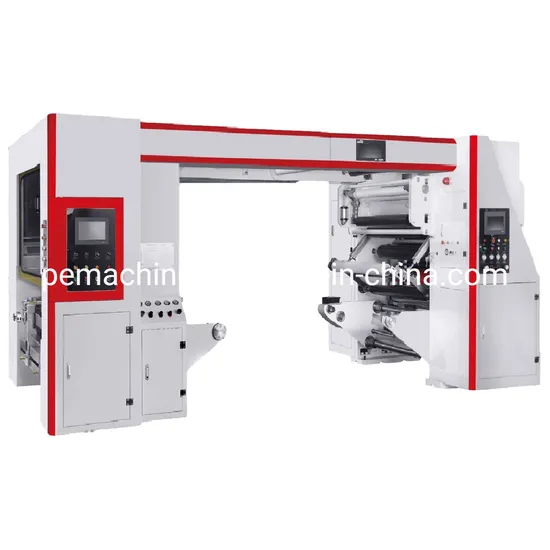

BSEN-1050A Solventless Laminating Machine
Main Technical Parameters Printing Material's way Left to right Mechanical Speed 580m/min Max Laminating Speed 500m/min (The max. production speed will be affected by the quality and properties of substrate and adhesive used) Max coating width 1050mm Max roll width 1050mm Min roll width 400mm Max unwind diameter Ø800mm Max rewind diameter Ø1000mm Unwind paper core 3''=76mm and 6''=152mm Rewind paper core 3''=76mm and 6''=152mm Unwind tension range 3--40kg(400NM) Rewind tension range 4--55kg(550NM) Rewind tape tension setting range 100%--60% Max roll's weight 1,000kg Range of coating amount 0.8-3gsm Dimension 5100*3600*2500mm Power 53kw Weight 14000kg Machine's color Ivory white (as per buyers

---
