Transformer Silicon Steel Automatic Cutting Cut to Lenght Machine

US$108,000.00-165,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HJ-400/2200
Drive Mode
CNC
Warranty
2 Years
Length
400~2200mm
Width
40~400mm
Thickness
0.23~0.35mm
Tolerance of Length
0.15mm
Shearing Angle
0.025
Shearing Burr
0.02mm
Tolerance of Width
0.1mm
Burr
0.03mm
Tolerance of S
0.2mm/2m
Feeding Speed
0~120m/Min
Rated
P=30kw
Maximum Load Weight
1800kg
Width of Coil
40~400mm
Mandrel Diameter Change
480-520mm
Punching Blade Stroke
7mm
Transport Package
Standard Packing
Specification
13500mm*W1900mm*H 2400mm
Trademark
Senerge
Origin
China
Production Capacity
3 Sets/Month

Product Description


Transformer silicon steel automatic cutting cut to lenght line machine machinery factory
1.Summary
HJ-400/2200 is specialized equipment for production of transformer cores . It consists of 2 shearing station and 1 V-notching station and 1 hole punching station to process the lamination of yoke, leg, center leg and etc.

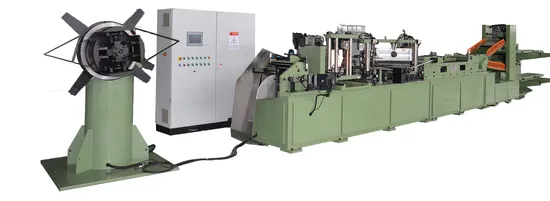

2.Equipment schematic diagram
3.Core type processing
4. Main technical performance
4.1 Processing range
Length 400~2200mm
Width 40~400mm
Thickness 0.23~0.35mm
4.2 Process precision
Tolerance of length:≤±0.15mm
Shearing angle:±0.025º
Shearing burr:≤0.02mm
4.3 Applicable silicon coil specification requirements
Tolerance of width ≤±0.1mm
Burr ≤0.03mm
Tolerance of S ≤0.2mm/2m
Feeding speed 0~120m/min
5.Detailed photos
6.Core production
