High-Speed High-Accurate Automatic Screen Printing Machine New Condition Plain Rotating Robot with Motor for Label Card Printing

Product Description

Model number: GB-2030PD

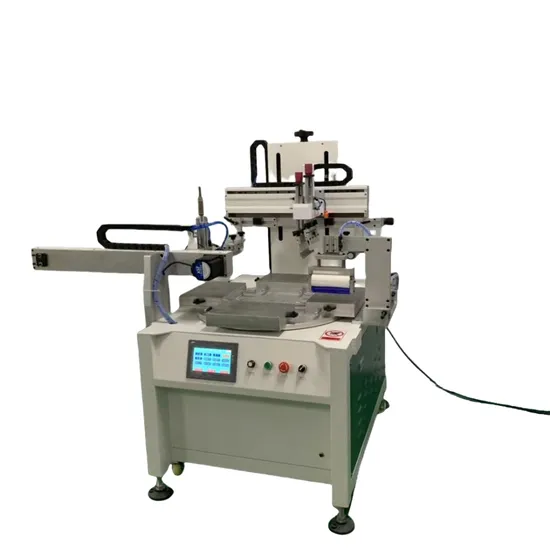

GB-3045P vertical pneumatic plane screen printer is mainly used for printing: glass, keyboard, acrylic, medical sphygmomanometer panel, touch panel, inscription board sign, ceramics, stationery, and small film / sheet / plate shape and other products precision plane screen printing.
Product functions:
1, microcomputer control the functions of the action, high degree of automation, simple and convenient operation.
2. There is a four-digit automatic counter.
3, the printing stroke and speed are adjustable to meet different printing requirements.
4, the workbench can be before and after, left and right and plane pendulum fine tuning, convenient adjustment, fast.
5. Pneumatic seal scraping control and with pressure adjustment system.
6, stable and reliable performance of the bright and clear blue display, display the working state of the machine at any time.
7, excellent quality AUTONICS sensor and perfect fault alarm system.
8, convenient foot switch, simple operation, convenient maintenance.
9, Light and solid alloy die-casting parts and wear-resistant imported bearing sleeve.
10, the use of international famous brand pneumatic components.
11. Independent printing and ink return speed control.Technical Parameters:

1. Printing Colors	1 Color (can be overprinted with multiple colors)	12. Stroke of Screen Frame Up and Down	200mm
2. Single Cycle	Yes	13. Squeegee, Ink Squeegee Up and Down	30mm
3. Continuous Movement	Yes	14. Lifting Drive	Air cylinder drive
4. Project Counting	Yes	15. Control System	Microcomputer control
5. Delay of Each Part	Yes (adjustable)	16. Control Voltage	DC24V
6. Printing Speed	1,200 times/hour	17. Power Supply Voltage	AC220V 50/60HZ
7. Maximum Screen Frame	400*650mm	18. Working Load power	100W
8. Maximum Printing Area	180*250mm	19. Working Air Pressure	0.5-0.7MPA

9. Printing Height	120mm	20. Air Consumption	3.0L
10. Table horizontal and horizontal adjustment amount	±6mm	21. Body shape size	1500*1200*1540mm

11. Left and right stroke of the screen

400mm

22. Machine Weight

650KG

---
