US$2,000.00-12,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Transport Package
Standard Wooden Case
Specification
Customer customization
Production Capacity
1000sets/Year
Product Description

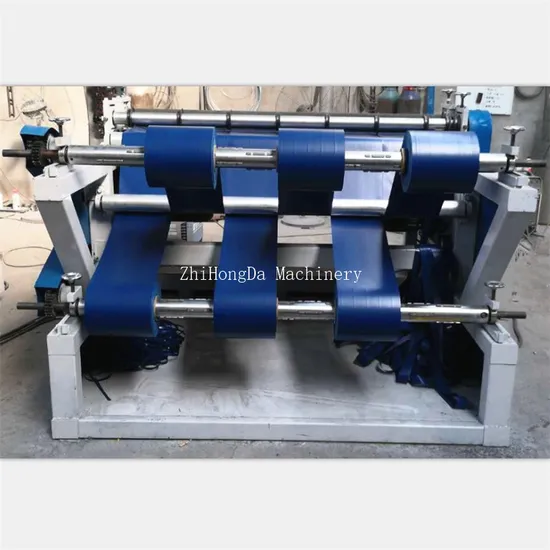

PVC PE Film Cutting Winding Machine
Usage: This machine is mainly used for cutting and rewinding thin sheets, greatly improving production efficiency.
Model: 1000mm
Descriptions:
This Automatic Cutting Winding Machine is suitable for cutting nonwoven fabric, meltblown cloth, hot air cotton fabric and other roll materials. It has the advantages of high precision, fast speed, neat winding and so on. At the same time, the Slitting Rewinder Machine is easy to operate, beautiful appearance and stable performance. The machine can automatically record meters, cut, automatic tension control, abnormal automatic alarm, parking and other functions.
Features:
1, Frequency control of main engine
2, The combination of the general control box, flexible and convenient operation
3, Air expansion shaft (installed slip shaft), magnetic powder brake, automatic tension control is adopted for winding
4, The feeding length is automatically measured
Technical parameters:
| Model | 1000 |
| Max.slitting width | 1000mm |
| Max. unwinding diameter | 600mm |
| Max. rewinding diameter/roll | 600mm |
| Unwinding deviation correction | ≤0.5mm |
| Min.slitting width | 20mm |
| Slitting accuracy | ±0.1mm |
| Slitting speed | 5-80m/min |
| Slitting thickness | 15-400g/m2 |
| Slitting material | PVC/PE/Leather/Nonwoven Fabric/Meltblown Cloth/ plastic film etc |
| Rewind motor power | 2.2KW |
| Main motor power | 1.5KW |
| Winding and unwinding air expansion shaft | Standard diameter 74mm(can be customized) |
Products show:
Cutting materials:
Packing and Delivery
Standard model: 800mm-1800mm
We can accept customized any other model according to users requirements.
Welcome to inquire and negotiate.
Thanks for your attention!
>>
