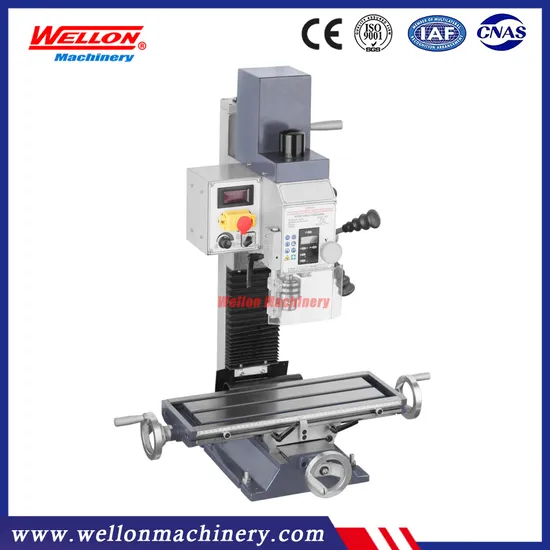

Bench Milling Drilling Machine WMD30V WMD30LV

Product Description

Product Description

Bench Milling Drilling Machine WMD30V WMD30LV

Detailed Photos
Product Parameters

Performence Features:
Simple operation, a wide range of processing.
High-strength cast iron column. Gear box.
Technical parameter:

Specification	WMD30V	WMD30LV
Max.drilling capacity	32mm	32mm
Max.tapping capacity	20mm	20mm
Max.face milling capacity	76mm	76mm
Table size	700X180mm	840X180mm
Spindle taper	MT3/R8	MT3/R8
Spindle stroke	70mm	70mm
T Slot size	12mm	12mm
Spidle speed	Variable	Variable
Range of spindle speed	50-2250mm	50-2250mm
Spindle incline angle	90°	90°
Distance from spindle to column	240mm	240mm
Distance from spindle nose to table	360mm	360mm
Motor	1.1kw	1.1kw
Packing size	710X890X1120	710X890X1120
Weight	220/235kgs	220/235kgs

Standard accessories:
1.Spindle deep ruler
2.Morse taper
3.Draw bar
4.Tool kit
5.Drill chuck with arbor
Optional accessories:
1.Speed display
2.Vice
3.Milling chuck set
4.Keyless chuck
5.58PCS clamping tool kit
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
