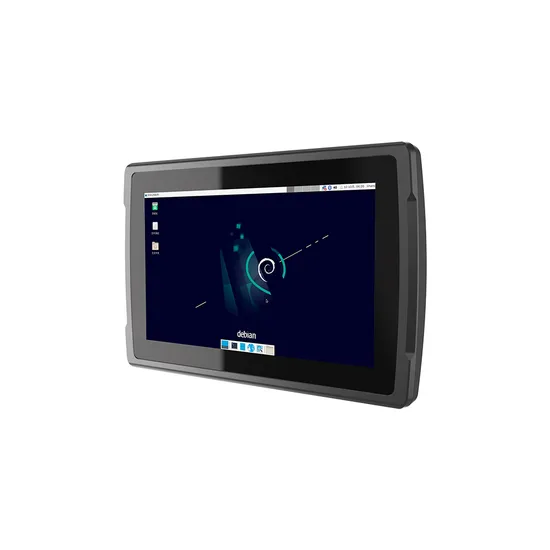

10.1inch IP65 Industrial Factory Transport Vehicle Mounted Android Rugged Tablet V12r

Product Description

10.1inch IP65 Industrial Factory Transport Vehicle Mounted Android Rugged Tablet V12R Product Description Features 1.Equipped with Rockchip RK3568 Processor, low-power consumption; 2.Android 12+ Linux dual systems, compatible with a variety of applications; 3.Standard WIFI 5, BT 5.0, optional 4G and data radio communication modules; 4.Peak brightness up to 700 nits, offering unparalleled clarity in bright outdoors; 5.GPS / GLONASS / Beidou and RTK high-precision positioning systems are available; 6.Multiple interface options covering AHD / TNC / SMA / Deutsch interfaces; 7.Supports 6V to 36V wide voltage input, catering to diverse vehicle charging needs; 8.IP67-rating, compliant with ISO 16750 road vehicle performance testing standards.
Product Parameters

Operating System	Android 12 + Linux Dual-System
CPU	Standard RK3568, Quad-Core 64-bit Cortex-A55 Processor, with a maximum frequency of up to 2.0GHz.
GPU	Mali-G52-2EE
Memory	RAM: 4GB (Optional 8GB) ROM: 64GB (Optional 128/256GB)
Display	Type: HD Size: 10.1-inch 16:10 Resolution: 1280*800 IPS Brightness: 700cd/m²
Touch Panne	Asahi Glass Cover, 5-Point Capacitive Screen, Hardness of 7H
WIFI	Band: WIFI 802.11 (a/b/g/n/ac) Frequency: 2.4G + 5.0G (5.1G + 5.8G) Dual-band WIFI Others: Supports AP seamless roaming
Bluetooth	BT 5.0 isochronous channels feature BLE_125K -104 dBm
4G (Optional)	LTE Cat 4 WCDMA: B1+5+8 TDD: B38+40+41 FDD: B1+3+5+7+8+20+28
GPS	Supports GPS (L1 1.575GHz C/A code), BeiDou (B1 1.561GHz), GLONASS (L1 1.602GHz)
Data Radio (Optional)	Frequency range: 410-470MHz
Material	282*181*31mm
Dimension	TBD
Product Color	Black
Buttons	Power *1 Customizable * 1 (F1 Key) Customizable * 1 (F2 Key)
Wide-Voltage Power Supply	6-36V (DC input, supports ignition detection)
ACC	Supports delayed power on/off switch
Speaker	3W Single Speaker
Microphone	Single MIC
RTC	Built in 2032 RTC dry battery
G-Sensor	Built in
Functional Modules
CAN	Supports 2 CAN channels Supports 250K / 500K CAN Supports common agricultural machinery, engineering vehicle protocols such as J1939
	RTK High Rrecision Locating (UM 982) (Optional)
	Dual-antenna positioning and orientation Dual-antenna mode supports BDS B1I/B2I/B3I, GPS L1/L2/L5, GLONASS G1/G2, Galileo E1/, E5a/E5b, QZSS L1/L2/L5, SBAS
Data Radio (Optional)	Frequency range: 410-470MHz
AHD Multi-Channel Cameras	Supports up to 4 AHD cameras
Interfaces
SIM Card Slot	MICRO-SIM * 1
TF Card Slot	MICRO-SIM * 1
Standard USB-A Port / Data Transfer	USB 2.0 * 1, USB-A Port, HOST Data Transfer
Video Input	AHD*4, GX12 4-pin connector * 4
Deutsch Interfaces	26-PIN Deutsch Interfaces (Optional in the Solution)
Rugged Features	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 85 °C
	±6kV contact discharge, ±10kV air discharge (Optional: ±8kV contact discharge, ±12kV air discharge)
	Humidity: 95% Non-Condensing
Certification	IP67, CE, CCC, MIL-STD-810H, ISO7637, ISO16750
Optional Accessories	26-PIN Deutsch Interface Functional Bus (Customized according to the solution)
	Bracket (RAM 38 * 30mm ball head)
	ACC Power Cable
	DC Conversion Cable
	Power Adapter 12V4A DC φ4.0 adapter
	GPS Vehicle Mushroom Antenna Active GPS mushroom antenna, 3-meter cable, gain of 28dBi ± 2dBi
	4G External Suction Cup Antenna
	Data Radio, External Suction Cup Antenna
	RTK Mushroom Antenna (TNC Connector)

Company Profile Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of POS & POS Peripheral Products. We are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
FAQ 1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we receive

---
