PT100/Cu50 to 4-20mA Analog Signal Rail Mount Temperature Signal Isolator

Product Details

Product Description

Product Description
Pt100/Cu50 to 4-20mA Analog Signal Rail Mount Temperature Signal Isolator
Features:
1. Three-wire, four-wire or two-wire PT100/Cu50 thermal resistance signal input
2. Accuracy, Linearization error grade:0.2(Relative Temperature)
3. Built-in linear processing and long-term compensation circuit
4. Isolation Voltage: 3000VDC Three port: input/power/output
5. Auxiliary Power Supply:5V, 12V, 15V or 24VDC, etc
6. International standard signal output:4-20mA/0-5V/0-10V etc
7. Small size, low cost, easy use and high reliability

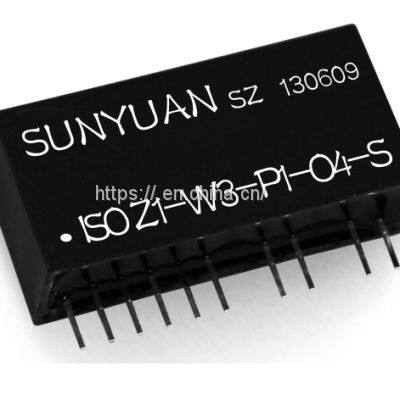

8. Standard DIP 24/SIP12 Pin, UL94V-0 package
9. Industrial temperature range: - 45ºC ~ + 85 ºC
Applications:
1. Temperature signal isolation, acquisition and transfer
2. Industry site high-precision temperature measure
3. Terminal resistance signal isolation and temperature control
4. Ground interference suppression
5. Temperature sensor signal converter to standard signal
6. Oil temperature measure and Alarm
7. Signal remote without distortion transmission
8. Power monitoring, medical equipment, temperature control isolation barrier
Specification:

Item	Pt100/Cu50 to 4-20mA Analog Signal Rail Mount Temperature Signal Isolator
Model No.	ISO Z-W-P-O
RTD Type	Pt100, Pt10, Cu100, Cu50
Input temperature range	-20-100ºC, 0-100ºC, 0-150ºC, 0-200ºC, 0-400ºC
Output	4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V
Power supply	24V/12V/15V/5VDC
Isolation voltage	3KVDC isolation between input and output
Package	Sip 12, Dip24, DIN rail mounted type

Optional package:

---
