90m3/H Automatic Concrete Batching Plant

US$150,000.00
1-9 Sets
US$100,000.00
10+ Sets

Basic Info.

Model NO.
sd7
Machining Process
Vibrating Mixing
Structure
Spiral Type
Productivity
90m3/H
Feeding Height
1400mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Air Compressor
3kw
Electromagnetism Valve
1
Drawbar Pin
1
Batching Control Meter
Made in China
Circuit Breaker
Delixi
Connecting Cable and Accessories
Made in China
Cement Silo
50t/100t/150t.Customized
Hoisting Mixer System
Discharge Height 4.1m
Aggregate Hoisting and Measuring System
Made in China
Transport Package
Naked in Container
Specification
CE
Trademark
Super-above
Origin
Jiangsu, China
HS Code
8474310000
Production Capacity
5000PC/Year

Product Description

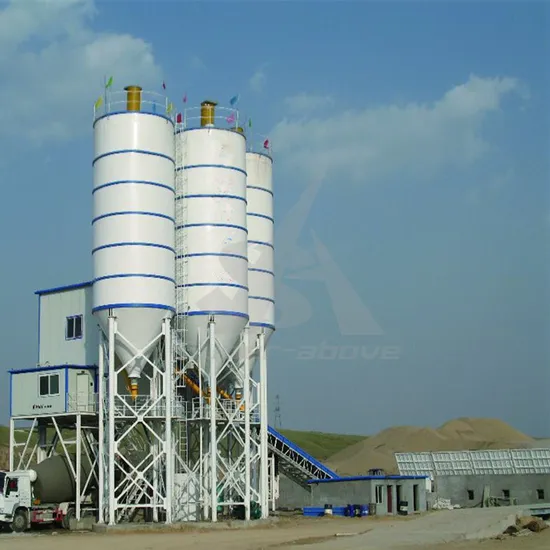

90 ready mixed stationary concrete batching plant
stationary concrete batching plant is one of the best-selling products of CamelWay. stationaryconcrete batching plant mainly
includes mixer JS1000 ,batching machine,conveying system,
weighing system etc.High wear-resistant alloy twin shaft mixer is durable.Belt filling is high effciency .With theoretical
productivity 60m3/h, stationary concrete batching plant is applied to roads, airports,ports project and concrete production.
Features: 1,JS1500 with two kinds reducers: cycloidal reducer and planetary reducer; 2,High efficiency with 90m3/h productivity; 3,Stable pneumatic system; 4,Easy-operating with imported SCHNEIDER and SIEMENS components in PLC+PC model; 5,Well-designed electrical system; 6,High-resistant manganese steel alloys; 7,Adjustable hydraulic discharging door;
Technical parameters
Product Name HZS90 Continouos Concrete Batching Plant
Application Building,Road,Railway,Bridge etc.Construction Project
Productivity (m3 /h ) 90
Mix Recycle Time(s) 60
Mixer Model JS1500 Concrete Mixer Machine
Batching Machine Model PLD2400 Batching Machine
Discharging Way Auto Hydraulic
Aggregate Feeding Method Belt Conveyor
Control System Centralized Computer Control
Cement Silo 100T/200T/As Requirement
Product Keywords 90 cubic meters hzs concrete mixing plant

Model HZS25 HZS35 HZS50 HZS60 HZS90 HZS120 HZS180
Capacity (m3/h) 25 35 50 60 90 120 180
Mixer JS500 JS750 JS1000 JS1000 JS1500 JS2000 JS3000
Aggregate batcher PLD1200 PLD1200 PLD1600 PLD1600 PLD2400 PLD3200 PLD4800
Discharge height (m) 3.8 3.8 3.8 3.8 3.8 4 4
Cycle time (s) 60 60 60 60 60 60 60
Weighing accuracy Aggregate ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
Cement ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01
Water ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01
Additive ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
