China Classic Lathe Turning Machine Ck6140 Lathe Mechanical for Metal

Product Description

Product Description

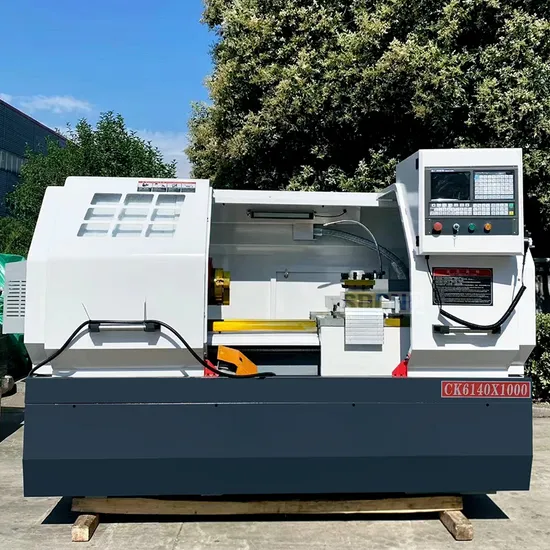

CK6140 Small Hobby CNC Horizontal Lathe Turning Machines: The CK6140 small hobby cnc horizontal lathe turning machines is widely used in electrical, instrumentation equipment industry, automobile, motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware watches and clocks, glasses, cultural and educational supplies, electrical appliances, valves, gas fittings and other high-precision complex parts Of the processing and manufacturing, CK6140 small hobby cnc horizontal lathe turning machines metal processing industry is the most efficient and efficient equipment. CNC Lathe Features: CK6140 small hobby cnc horizontal lathe turning machines
1. High-frequency rail quenching, high hardness and wear resistance
2. Spindle with angular contact ball bearings, high-speed high rigidity.
3. Instrument lathe upgrade products, with a high cost, ball screw inside CNC Lathe Technical Specifications:

Specifications	Unit	CK6140
Max.swing over bed	mm	Ф400
Max.swing over cross slide	mm	Ф180
Distance between centers	mm	750/1000/1500/2000
X/Z axis travel	mm	X:220 Z:1050/1600
Spindle transmission type		Mechanical 2 gear transmission ,in gear variable speed
Spindle speed steep		variable
Spindle speed	rpm	L:70~560,H:200~1600
Spindle nose		C6
Spindle hole	mm	52/80/130
Spindle taper		MT6
Spindle motor	KW	5.5/7.5
Chuck size	mm	200
Ball screw dia.and pitch	mm	φ25X6/φ40X8
X/Z axis feed motor torque	N.m	X:6 Z:10
X/Z axis feed motor power	KW	X:1.5 Z:2.5
X/Z axis fast moving speed	mm/min	X:6000 Z:8000
X/Z axis Position accuracy	mm	0.02/0.025
X/Z axis repeatability	mm	0.01/0.015
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ra1.6
Tailstock sleeve dia.	mm	65
Tailstock sleeve travel	mm	140
Tailstock sleeve taper	#	MT4
Guide form		Spindle mountain+flat rail
Total power capacity	KVA	10
Machine dimension(L×W×H)	mm	2500/3000X16500X1650
N.W.	kg	1800/2300/2500

---
