US$64,000.00-65,000.00
|
1 set
(MOQ)
|
Basic Info.
Processing Object
Surface
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
GS, CE, ISO 9001
Max.Workpiece Weight
2000kg
Transport Package
Wooden Case
Specification
Grinding Length(O. D/I. D)1000/125
Production Capacity
1000 Sets / Month
Product Description
Structure
The left and right guide rail adopts P-V structure which is scraped by high precison manual ,so that the whole system products have high precision and high stability
The front and rear feed guide rail of grinding .
Wheel can choose roller and wire rail stucture
Chassic control mechanism ,simple ,safe and reliable .
M1350 series worktable and grinding wheel guide rail adopts high stable hydrostatic guide rail,high rigid dynamic and static pressure spindle
Specification
| Description | Unit | M1350/3000 |
| Max.length ground (O.D) | mm | 3000 |
| Center height | | 270 |
| Dia.Ground O.D) | mm | 25-500 |
| Max.workpiece weight | kg | 2000 |
| Workhead | |
| Center taper | MT | MT6 |
| Spindle speed | r/min | 50HZ :10-100 |
| Wheelhead | |
| Max.diemension of wheel(OD*W*ID) | mm | 750*75*305 |
| Wheel peripheral velocity | m/s | 35 |
| Hand.feed per .rev | mm | rough:4 fine :0.5 |
| Hand feed per gra | mm | rough:0.02,fine:0.0025 |
| Table | |
| Max.swiveling angle of table | ° | Clockwise:2°
Anficlockwise:3° |
| Longitudinal speed range of talbe | m/min | 0.1-3 |
| Tailstock | | |
| Center taper | MT | MT4 |
| Quill travel | mm | 70 |
| Motor | | |
| Wheelhead motor power | KW | 15 |
| Workhead motor power | KW | 4 |
| Machining accuracy | |
| Roundness | um | 5 |
| Cylindicity | um | 10 |
| Roughness | um | Ra0.32 |
| Machine | |
| Gross weight | T | 13T |
| Packing dimension | cm | 796*225*210cm |

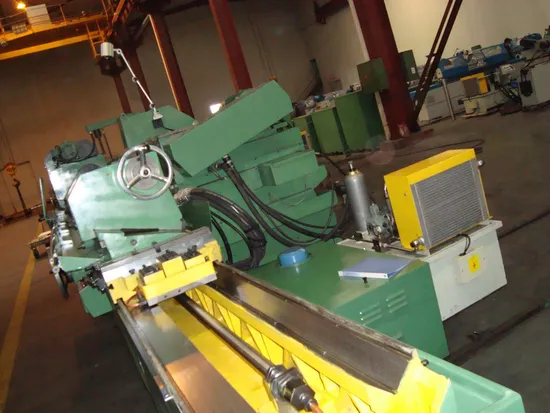

Machine Photos
>>
