Low Cost 3 Axis CNC Vertical Machining Center Vmc850 CNC Milling Machine

Product Description

Product Description

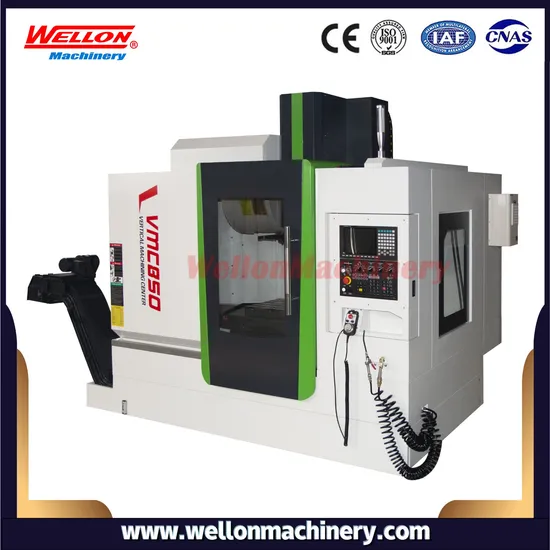

CNC Vertical Machining Center VMC850 CNC Milling Machine

Detailed Photos

Product Parameters

Main configuration & accessories: 1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical Parameter:

Model	VMC850
Table size	1000*500mm
Max. table load	600kg
T slot qty-width*distance	5-18*100
spindle speed	8000rpm
spindle nose to table surface	150-650mm
Spindle center to Column surface	580mm
Spindle taper	BT40
Main motor power	7.5kw
Three-axis servo motor power	2.0/2.0/3.0kw
Force on X, Y, Z axes	10/10/15Nm
X axis travel	800mm
Y axis travel	500mm
Z axis travel	500mm
X/Y/Z axis rapid feed	48/48/48 m/min
Feeding rate	10 m/min
Tool changer type	24 Tools disc type
Max. tool length	350mm
Max. Tool diameter	φ100
Max.tool(kinfe) weight	7kg
Positioning accuracy	±0.007 mm
Repeat positioning accuracy	±0.004mm
Net Weight	6000kg
Overall Dimension	2800*2250*2700mm

Standard accessories: Fanuc 0i-MF(5) control system
Taiwan Spindle: 8000rpm
X/Y/Z axis: Fanuc servo drive motor
Main motor: Fanuc spindle motor
24 tools Disc type ATC
USB for information transfer
Rough cutting of thread
Full closed cover
Automatic lubrication
Heat exchanger in cabinet
3-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from Taiwan Hiwin
Tri-color indication lampCoolant system
Work lamp
Air gun
Water gun
Optional accessories: Automatic chip conveyor & chip bucket (Chain type)
Automatic chip conveyor & chip bucket (Screw type)
Spindle direct driven, speed 12000 rpm
Spindle oil cooling
Spindle center water spray
Nitrogen balance cylinder
Safety doors
Air conditioner for electricity cabinet
4th Axis or 5th Axis

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,
Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
