Large Farms Use Multifunctional Garlic Packaging Machines and Harvesting Machine

Product Description

Product Description
The utility model relates to the field of agricultural machinery technology, specifically a self-propelled garlic harvester, which includes a frame, an engine, a gearbox, a walking mechanism, a harvesting mechanism, and a driving handle.
The frame includes an upper frame, a lower frame installed at the bottom of the upper frame, a first connection frame installed at the left end of the upper frame, and a second connection frame installed at the right end of the upper frame.
The harvesting mechanism includes an eccentric wheel connected to the gearbox, The plow blade fixing frame and the connecting arm connected between the eccentric wheel and the plow blade fixing frame.
The middle part of the plow blade fixing frame is located on the inner side of the second connecting frame and is hinged with the second connecting frame.
The driving handle has a connecting end, and the connecting end of the driving handle can be selected to be connected to the first or second connecting frame.
Therefore, according to the user's needs, the garlic harvester in the required configuration can be quickly assembled, which is flexible and convenient to use, Flexible and suitable for different planting terrains of garlic

Product Parameters

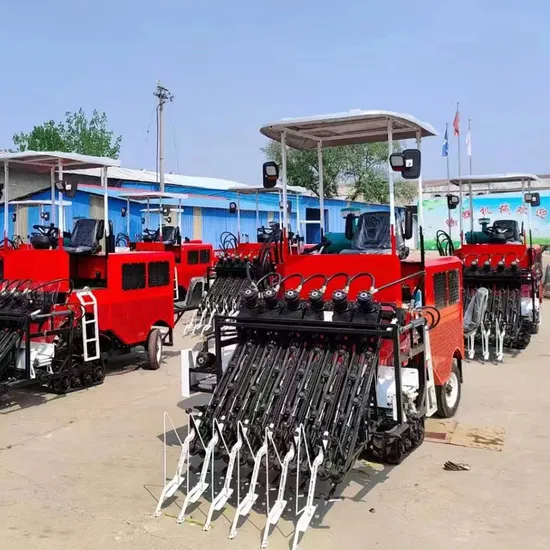

Product name	Self-Propelled Garlic Harvester
Model	BF-1500p
Row spacing requirment	17.5-22cm
Damage Rate	<1%
Depth Range	0-10cm(adjustable)
Working efficiency	0.247-0.412acre/h
Auxiliary power	diesel engine
Diesel engine horsepower	50HP
Machine weight	2000kg
Machine Dimensions	5300*1850*2600mm

Detailed Photos
Customer Evaluation
Certificate of honor
Packaging & Shipping
FAQ
--Frequently Asked Questions
Q: What's Service commitment?
A: 1.Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Q: What to do if the machine has a problem?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
For better offer our suggestion and prepare quotation, hope we can know below info from you:
A. Your bag size
B. Your bag picture
C. Packing weight
D. Packing speed requirement
E. Exactly product need to packed

---
