| Plastic Injection Mold |
| Product Material | ABS, PA, PA66+30GF, PBT, PC, POM, PP, PE, MA,PVC,TPE,TPU etc |
| Material of Steel | 738,718,NAK80,S136,P20 etc |
| Surface Requirement | Smooth, Polishing, Painting, SandBlasting, Electroplate, Silk-screen, Laser Etching, Anodizing,Brushing |
| Tolerance Request | UP to (±0.005mm) |
| Mould Life | 500000-1200000 shoots |
| Multi Injection | Single/Double/multi color |
| Design Software | Pro/E,UG,Catia,Woodwork,Moldflow,AutoCad |
| Injection System | Hot /Cold Runner |
| Inserts(cavity and core) | H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80 or the material you required |
| Mold Cavity | 1*1,1+1,1*2,1+1+1,etc |
| Gate type | Side gate,Sub gate,Pin point gate,Edge gate etc |
| Ejector System | Stripper plate,Lifter,Push bar,Ejection pin etc |
| Steel Standard | FINKL,Assab,DAIDO,LKM,Buderus |

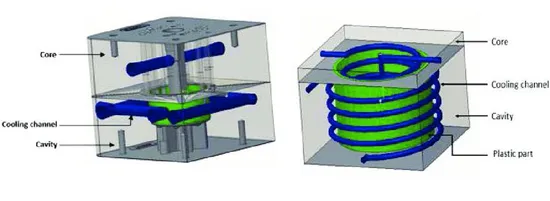

| Cooling | Baffles/Sprin Piple/3D printing water line |
| Standard Parts/Cylinders | DME/HASCO/PROGRESSIVE/MISUMI/Parker/HP/Merkle |
| Design Capability | DFM,Mould flow analysis,Product optimization, Full 2D & 3D mould design,Reverse engineering,Collaborative design with customer's idea |
| Documents / Reports Provided | Fully drawing,Weekly Processing Report, Steel Dimension report, Processing Report,Sample Dimension Report |
| Certificate | ISO9001 ISO14001 |
| MOQ | 1sets |
| Lead Time | 6-10 weeks or according to the order requirement |
| Payment | 40%Deposit, 30%Before Product Inspection, 30%Before Shipment |
| Port of loading | SHUNDE/GUANGZHOU/SHENZHEN |
A: We are a professional manufacturer of injection mold for above 30 years in Donguan China.
Q: Can you do Assemble?A: Of cause we could do. Our factory with assembly room.Q: I have an idea for a new product, but not sure if it can be manufactured. Can you help?A: Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.Q: My products have already been developed on CAD. Can you use the drawings?A: Yes! DWG, DXF, IGES, Solidworks and Rhino files can all be used to generate quotes, models and mould tools - this can save time and money in producing your parts.
