Product Description
Product Description

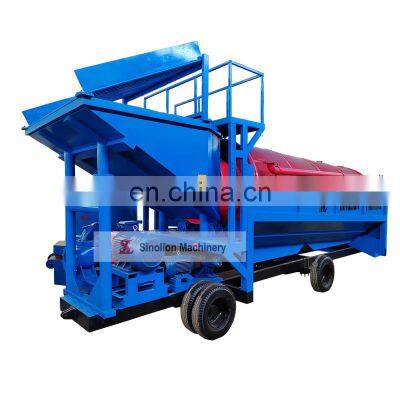

High efficiency trommel gold washing plant mobile gold trommel screen for sale Product DescriptionTrommel gold washing plant, placer gold beneficiation machinery as a mining, recovery of sand gold heavy metal machine is currently used in the global scope of sand gold mining areas. They come in many sizes, but they are all designed and made with the aim of recycling gold. The trommel gold washing plant movement is very convenient and can be applied to a variety of terrain, terrain is soft sandy or hard rock, stone or more can be applied, and must also very convenient, can satisfy the development of mining while walking. This method has a good effect on a large range of sand gold mining areas, which can save more production costs and increase mining efficiency. The trommel gold washing plant working principle:1. Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper. 2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel. 3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.technical parameters ModelCapacity(t/h)Power(kw)Diameter(mm)Length(mm)Discharge(mm)Input(mm)Dimension(mm)YGTS05205-10350020000-100≤3003390×1100×1640YGTS102010-304.0100020000-100≤3003390×1400×2140YGTS122530-505.5120025000-100≤3004146×1600×2680YGTS154550-12011150045000-100≤4008160×2>300×2500YGTS154880-15011150048000-100≤4008460×2300×2500YGTS1848100-20015180048000-100≤4008460×2300×2700YGTS2060200-35030200060000-100≤4009680×2300x3420 The gold washing machine can be used for gold washing and screening. The gold washing machine offer an expanded processing capacity that rivals all competitor mobile gold wash plant trommel equipment. The gold washing machine has an average of 100-300 m³/h OR 170-510 tons per hour based upon 1.7 tons of material weight per cubic meter conversion. Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper. Selection and cleaning of raw materials Raw materials of the gold washing machine will be cleaned and selected by the rotation of gold washing machine and by watering of the shower inside, run into the gold dust separate panel. Motor Brand of driving device can choose on your request. International brands like SEW, ABB, SUMITOMO, SIEMENS.China brand like Yutong,Tailong,Guomao,Taixing,Nangaochi. Powerful enclosed and compact efficient motor drive Shaft mounted and underslung gearbox reducer. Optimization YOX & YOT constant filling hydrodynamic coupling. Good balance and strong braking force Brake. Screen mesh The mesh hole is not easy to block.Screen mesh with special material wire meshHigh screening efficiency,Bold material, heavy bearing, long use timeIt is easy to replace the screen with a bead According to the characteristics of the screening material, a fully enclosed structure or an open structure can be selected. Gold washing mat Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.Fine Size Gold Recovery SystemName: Knelson type gold centrifugal concentrator Processing capacity: 15tph-60tph dry solidsQuantity: 2- 4 pcsRemark: Fully continuous typeFunction: for fine size dust gold recovery (-6mm)Recovery Rate: 99% Gold shaking table is a gravity dressing machine,which has high separation efficiency.It is designed to wet gravity-based separation of minerals and other granular materials.Gold shakint table does not need reagent compared with the traditional process as well as it can make the materials concentrated at one time.Gold shaking table is mainly composed of bed head, electromotor, adjusting gradient device, bed surface, ore chute, water chute, rifle bar and lubricating systemPowering systemName: Cummins diesel engine generator setPower: 50Kw-350KwBrand: Cummins, Weichai, or as requiredFunction: supplying power to all the systems Mercury AmalgamatorType: drum typeWorking mode: amalgamator + distiller retortFunction: With the help of Mercury, to extract allthe gold out from the concentrates that recoveredby the sluice and concentratorsRecovery rate: 100%Gold Smelting Furnace Capacity: 10-15kg per batchMoulds: 100g; 200g; 500g; 1000g Function: to smelting thegold sand and makeinto final product of gold bars Packaging & Shipping if you need more photos and video , please click here to contact me : Caseif you need more photos and video , please click here to contact me : Customer Company Information if you need more photos and video , please click here to contact me :FAQQuestion 1: Can you give me a solution and quotation?Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc. Question 2: Way of paymentAnswer: Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated. Question 3: What’s the delivery time after I pay the deposit ? Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order. Question 4: How long of your machine quality guarantee terms?Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request. Related productsSmall Gold Trommel ScreenCentrifugal concentratorShaking Table
>>
