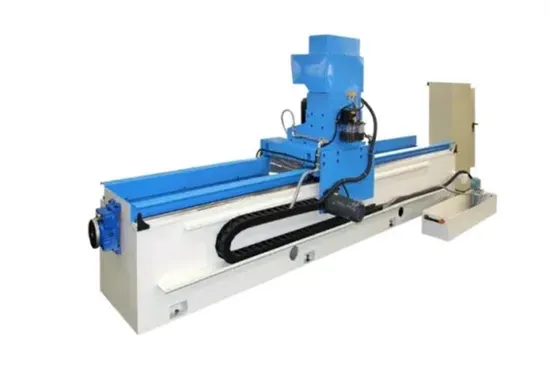

Automatic Magetic 5FT Knife Grinder Machine

US$3,300.00 1 SET (MOQ)

Basic Info.

Model NO.
DM1815
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Grinding Length
1500mm
Working Platform Width
200mm
Grinding Motor Power
4kw
Linear Speed of Grinding Wheel
15m/S
Transport Package
Standard Packing
Specification
3300 x 1400 x 1400mm
Trademark
METRO
Origin
Shandong, China
Production Capacity
200set/Month

Product Description

High Precision Automatic Woodworking Knife Grinder machine
1.This machine can work types: straight knife, knife like peeling knife, knife granulator, slicing knife, knife, scissors and so on.
2 Longmen frame design, combined with high quality steel welding, the elimination of internal stress, the elimination of internal stress. The body has a high strength and good rigidity.
3.grinding head with special motor. It can adjust the direction of axial clearance, stable transmission, long service life, high precision.
4 the vertical motion of the ball screw is used to ensure the accuracy.
5 the working platform adopts electromagnetic chuck, and it is very convenient to use a knife. The working table is easy to adjust the angle of the worm wheel and worm.
6 rail with linear guide rail to ensure the stability of the horizontal motion of the grinding head. Taiwan HIWIN linear guide rail imports.
7 use of transducer. Easy to adjust grinding head horizontal and vertical speed.
8 the working accuracy of the machine is 0.01mm
Parameters:
Machine name Automatic knife grinder
Machine model DM1815
Max. Grinding length 1500mm
Working platform width 200mm
Working platform angle ±90°
Grinding motor power 4Kw
Linear speed of grinding wheel 15m/s
Sliding plate speed CVT
Machine size 3300 x 1400 x 1400mm
Machine weight 198Kgs
