Yt Type Rail Clamp and Round Steel Clamp

Product Description

Product Name

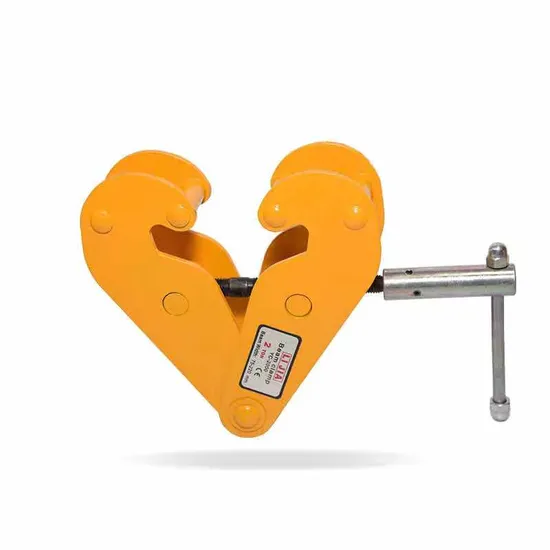

YT Type Rail Clamp
Product detail:
1. Provides a quick and versatile rigging point
for hoisting equipment, pulley blocks or loads.
2. Wide adjustment range .
3. The central threaded spindle allows easy
attachment and a safe and secure grip.
4. Small dimensions at beams with a low base.
YT Type Rail Clamp

Model	WLL(TON)	Jaw Opening(MM)	Weight(KG)
YT1	1	20-100	8
YT3	3	110-135	22

Working load limit(WLL):1T.
For lifting and handing of rails.
They are extremely easy and simple to use and make for safe lifting.
Available with automatic open/close device.
YC Type Rail Clamp

Part No.	Model	WLL (t)	Jaw Opening (mm)	Weight (kg)
WRS-170	TPH16	16.0	70	15.8
WRS-171	TPH18	18.0	70	22
WRS-172	YGC1	1.0	20-100	8
WRS-173	YGC3	3.0	110-135	22
WRS-174	YS/YC1	1.0	75-220	3.8/4.2
WRS-175	YS/YC2	2.0	75-220	4.6/4.8
WRS-176	YS/YC3	3.0	80-320	9.0/9.2
WRS-177	YS/YC5	5.0	80-320	11.0/11.2
WRS-178	YS/YC10	10.0	90-320	16.0/16.2

YG Round steel Clamp

Model	WLL(TONS)	Jaw Opening(mm)	Weight(kg)
YG0.5	0.5	50-100	3.2
YG1	1	50-100	4.1
YG2	2	80-130	16
YG3	3	120-220	32
YG5	5	200-320	104

Application :
Used for round steel, steel rail transport and movement.

Attention :
1. Suspension installation shall be conducted by the suspension installation qualification person.
2. Choose the type of machine suitable for the purpose.
3. Use within allowable load
4. Allowable plate thickness range.use
5. Heavy lifting, stage lifting, co-lifting, leaning lifting and horizontal grasping lifting shall not be allowed
6. Never enter the drop or flip area
7. No knocks or collisions shall be given to the lifting objects and spreader
8. Do not make the lifting material move or stop sharply
9. Avoid heavy lifting. It is better to use more than 2 hoisting tools for safety
10. Check head bite, gasket, interdental blockage, wear condition and other abnormal phenomena before use.
11. Overloading is strictly prohibited.
12. Do not stay in the air for a long time when loading.

---
