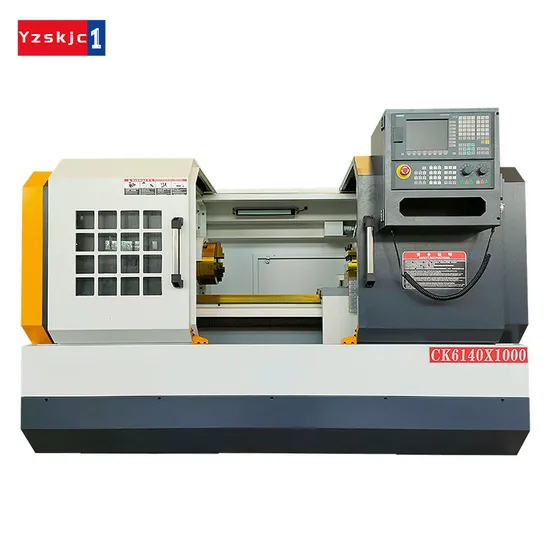

China Factory Turning Length 750mm 1000mm Small Metal Lathe

Product Description

China factory Turning length 750mm 1000mm small metal lathe

Product Description
The main technical parameters of the China factory Turning length 750mm 1000mm small metal lathe:

Technical Specifications
Datas		CK6140×750mm	Unit	Parameters
	Processing Capability	Maximum swing diameter over bed	mm	Φ400
		Maximum swing diameter over carriage	mm	Ф200
		Guide rail width	mm	360
		Maximum workpiece length between centers	mm	750
	Travel	X/Z axis travel	mm	220/750
		X/Z axis min.displacement unit	mm	0.001
	Spindle	Spindle torque	mm	Ф52
		Spindle bore taper		MT6
		Spindle speed	r/min	Servo spindle 2000
		Clamping type	mm	Manul chuck 200
		Main motor power	kW	5.5
	Tool Feeding	X/Z axis torque	N.m	4/6
		X/Z axis rapid speed	m/min	6/8
		X/Z axis ball screw pitch		Φ25×6/Φ40×8
		Tool holder type		4 station electric type
		Tool size	mm	20×20
	Tailstock	Tailstock type		/
		Tailstock sleeve diameter	mm	Φ60
		Tailstock sleeve travel	mm	100
		Tailstock center cone hole		MT4#
	Others	Machine weight	kg	1600
		Overall size	mm	1800×1350×1650
		General power (kw/A)	kW/A	10kW/20A
Standard configuration	No.	Item	Q'ty	configuration
	1	System	1SET	GSK 980TC3
	2	Chuck	1SET	Ф200 Manual
	3	Tailstock	1SET	Manual
	4	X axis ball screw	1SET	China
	5	Z axis ball screw	1SET	China
	6	Electric tool holder	1SET	Wenchang
	7	X,Z axis screw rod bearings	1SET EACH	Domestic (Ha're bin)
	8	X,Z axis couplings	1SET EACH	Imported
	9	Spindle bearings	1SET	Domestic P5(Ha'er bin)
	10	Casting	1SET	Highquality resin sand casting
	11	Bearing assembly	1SET	Assembly spindle
	12	Painting	1SET	Can be customized color
	13	Lubricating system	1SET	Can be customized color

Main features and function requirements for China factory Turning length 750mm 1000mm small metal lathe:
This series of machine tools is a mature product of the company, featuring a compact overall structure, pleasing appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.
The optimized design of the headstock box is suitable for turning operations on disc and shaft-type components. It allows for machining operations such as linear turning, arc turning, metric and imperial thread cutting, and multi-thread cutting. This design is capable of handling the turning of complex-shaped and high-precision disc and shaft components.
The machine tool features hard guideways for both the machine guide rails and the sliding saddle guide rails, utilizing special materials. These hard guideways undergo high-frequency quenching, resulting in exceptional hardness and wear resistance. This ensures prolonged durability and excellent precision retention for machining operations.
The controller system adopts GSK980TC3 and the machine utilizes domestically produced high-quality ball screws and high-precision screw rod bearings.
The machine tool incorporates high-precision spindle bearing assemblies that undergo precise assembly and dynamic balance testing. This ensures the spindle with high accuracy, low noise, and strong rigidity.
Each lubrication point is equipped with a forced automatic lubrication system for precise and quantified lubrication of the screw rods and guide rails. In case of abnormal conditions or insufficient oil levels, the system automatically generates a warning signal.
The standard configuration includes a domestically produced three-jaw self-centering manual chuck.
The guide rails are equipped with a chip scraping device to prevent corrosion from iron chips and coolant, facilitating easy cleaning of iron chips.
Detailed Photos
China factory Turning length 750mm 1000mm small metal lathe:
Packaging & Shipping
China factory Turning length 750mm 1000mm small metal lathe:
Our customers :
Our Advantages
After Sales Service
The warranty period is 12 months, calculated from the date of successful installation and trial operation.The equipment provided by the seller is new and unused. The performance of the equipment, after installation, debugging, and operation complies with the relevant national standards or stipulated in the agreement between the parties.The seller shall provide relevant technical support within 2 hours upon receiving a phone call from the buyer. In the event that the buyer is unable to resolve the issue independently, the seller will conduct troubleshooting at the within 24 hours in sellers' country . Parts identified as quality-related issues during the warranty period will be replaced free of charge.We have professional technician team and we could offer installation and training in customers' factory , just charge for reasonable labor fee .

Company Profile
Our company is a national leading high-tech enterprise, an innovative enterprise in Jiangsu Province. And have powerful advantages for the OEM machines . Especially for the Edge planer/edge banding machine. It has obtained the National Torch Program Project Certificate (Project No.: 2011GH040591), the National Key New Product Certificate (Project No.: 2010GR10042), Jiangsu High-tech Products (Certificate No.: 081088G0104N), the Test Report of Shanghai Testing Center, and the National Scientific and Technological Achievements Transformation Fund. And also obtained the national "one the Edge planer/edge banding machine software copyright" certificate, four invention patents and six utility model patents. At present, our company's the Edge planer/edge banding machine has a market share of 80% in China.
Jiangsu Yichong CNC Machine Tool Co., Ltd
Address: Yangzhou Jiangdu High-tech Industrial Park North Park Zip code: 225267 International Trade Department: Wendy Marketing Manager FAQ
What equipment can you get from our factory ?
Lathe machine
CNC Vertical machine center
Leveling machine
Plate edge milling machine
Boring milling machine
Edge planer
Gantry drilling and milling machine
Oil pressure
Rolling machine
We support customized machines , welcome your asking .
Why choose Jiangsu Yizhong Machine Tool Co.,Ltd
Quality guarantee :
We have our own factory 498700m2 and we have mature manufacturing experiences since 2006 .
Before machine sending , we will be debugging a long time and confirm it could run well .
We have a rigorous QA and QC procedures and confirm each process following the orders' standard strictly . welcome our customer-self coming to check the machine tools quality .
Delivery time :
Usually our delivery time from 10 working days to 6 months . according to the machines you want to buy .some machines have machine bed in stock .
When we quote you , we will write the machine tool delivery time , and we will abide it carefully .
Advanced technician team :
We recognize that technical innovation is very important for a manufacturer , so our factory set up the Jiangsu Yizhong Industrial design and reach institute years ago ,which makes our factory powerful in customized machines .
If some technical questions our sales person can not answer , they will ask them and they can give a quick response .
By the way , our engineers are available to customers' local factories to assist them to do installation , operation guide and machine tool upkeep .
Sales team :
Our salesmen all are trained before they serve to our customers in factory , so most questions about the machine tools , they can give fast response ,which will save our customers' time .
Our salesmen all love their jobs , so they have passions when working . if you have any technical questions could ask them better before 12pm ,China time .

---
