Good New Vertical Pillar Drilling Machine for Metal Z5040

US$4,050.00
1-9 Sets
US$3,950.00
10+ Sets

Basic Info.

Model NO.
Z5040
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Vertical Pillar Drilling Machine for Metal
Max. Drilling Diameter
40mm
Max. Taping Capacity
M27
Dia. Column
160mm
Spindle Travel
180mm
Spindle Speeds Range
42-2050rpm
Spindle Bor Taper
Mt4
Power of Main Motor
2.2/2.8kw
Dimension of Work Table Surface
550X470
Key Word
Vertical Drilling Machine
Function
Drilling Hole for Metal
Delivery Time
40 Days
Distance Spindle Axis to Column Generati
1180mm
Voltage
OEM
Transport Package
Wooden Case
Specification
1080x620x2450mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
108.00cm * 62.00cm * 245.00cm
Package Gross Weight
815.000kg

Product Description

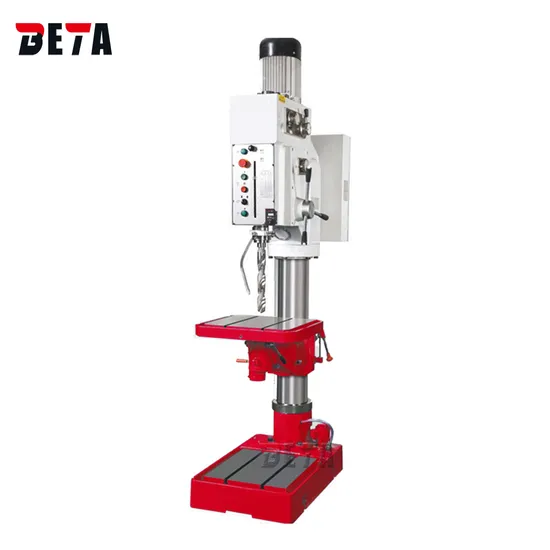

Good New Vertical Pillar Drilling Machine For Metal Z5040
Standard accessories:
Drill chuck Arbor Taper sleeve Drift Eyelet bolts Wrench
Model Unit Z5030 Z5035 Z5040 Z5050
Max. drilling capacity mm 30 35 40 50
Max. tapping capacity mm M20 M24 M27 M30
Diameter of column mm 120 140 160 180
Spindle travel mm 135 160 180 240
Distance between spindle axis to column generating line mm 320 330 360 360
Max. distance between spindle nose to table mm 550 590 590 570
Max. distance between spindle nose to base mm 1100 1180 1180 1160
Spindle taper MT3 MT4 MT4 MT4 or MT5
Spindle speed range r/min 65-2600 75-2500 42-2050 42-2050
Spindle speed steps 12 12 12 12
Spindle feeds 0.1, 0.2, 0.3 0.1, 0.2, 0.3 0.07, 0.15, 0.26, 0.4 0.07, 0.15, 0.26, 0.4
Worktable size mm 500x440 500x440 550x470 550x470
Table travel mm 490 550 550 550
Base size mm 400x390 400x390 450x440 450x440
Overall height mm 2050 2300 2330 2380
Main motor kw 0.85/1.1 1.5/2.2 2.2/2.8 2.2/2.8
Coolant motor W 40 40 40 40
N.W./G.W. kg 450/495 545/595 755/815 985/1045
Packing size mm 1080x620x2150 1080x620x2200 1080x620x2450 1080x620x2450

Feature and Application: New-designed,pleasing appearance,compact construction, wide speed change range, easy to operate. Easy operation with its unique workable,and manual operated lifting device. The working table can be rotated 180°and can be tilted ± 45°also,it is reliable and easy job can be done. Equipped with coolant system and tapping mechanism. Equipped with shortcut and overload protection, its electrical system with powerful spindle motor, it designed according to IEC standard. Characteristic protection device is safe and reliable Ideal choice for single piece, small batch and mass production for drilling ,counter boring, reaming, tapping, spot facing.etc.
