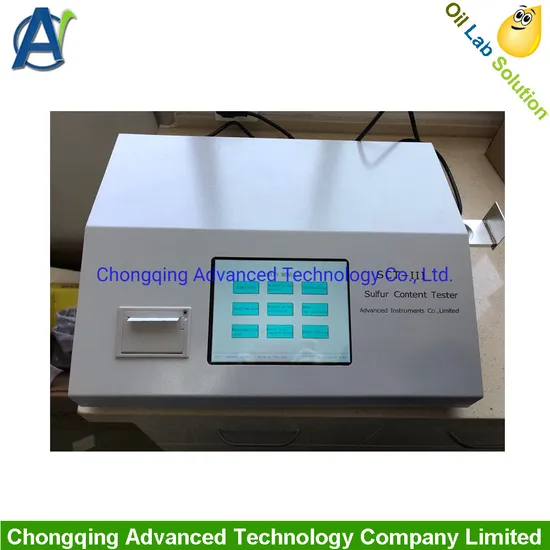

ASTM D4294 Sulfur in Oil Analyzer by Xrf Method

Product Description

Summary
The Sulfur In Oil Analyzer is specially designed to determine sulfur content in the petroleum products. Adopts energy-dispersive principle, and with electrical, mechanical and microprocessor integration design, so it is rapid and accurate. It can meet the requirements of national standard of China GB/T 17040, SH/T0742 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294. It provides a measure to determine sulfur content during petroleum or petrochemical production process.

I. Main technical features
1. The latest research results of GB/T 17040 in 2019.
2. The detection lower limit of sulfur content can reach 0.0017%, which can be widely used in the detection of sulfur content of related oil products with percentage content greater than this index.
3. Few samples are used for testing.(3ml-5ml), the detection time is fast (1min ~ 5min), and the detection result is stable, accurate and reliable.
4. Mechanical and electrical integration microcomputer design, 8-inch wide angle colored touch screen, simple and beautiful interface.
5. With the method of fluorescence intensity ratio analysis, the temperature and air pressure can be automatically corrected, and the C / H ratio can also be corrected.
6. This Sulfur In Oil Analyzer has the function of automatic diagnosis, automatic judgment of the working state of the instrument and automatic detection of working parameters.
7. The data storage capacity is large, it can store 4096 analysis results, 8192 count measurement data and 10 calibration curves. The stored data can be queried, it also can be uploaded to the computer through RS-232 standard communication port.
8. The working curve is automatically selected by default when the instrument is turned on, without user intervention.
9. The unit of measurement result can be selected, ppm or (m / m)%.

II. Main technical specifications

1	Measuring range	0.0017%~5%
2	Repeatability (r)	<0.4347 X0.6446
3	Reproducibility (R)	<1.9182 X0.6446
4	Detection limit	17 PPM
5	Oil sample quantity	3 ml-5ml
6	Measurement time	it can preset 30, 60, 90, 120, 150s, measurement repeat times:1, 2, 3, 5, 10(times). (The default measurement time of this instrument is 3 minutes, and the fastest measurement time is 1 minute.)
7	Sample measurement	Automatic measurement of single sample, average value and standard deviation at the end of measurement.
8	Calibration curve numbers	it can save 10 calibration curves.
9	Working condition	Ambient temperature: (10~30)ºCRelative humidity: ≤85% (30ºC)
10	Dimension	480mm×380mm×140mm
11	Weight	13KG

Factory overview
Customer Feedback
Germany
USA
Package
FAQ
1.What's the delivery time?
About 20 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.

---
