Vacuum Chamber Heat Accumulation for Space Environment Simulator

Product Description

Vacuum Heat Accumulation

Application:
To verify the adaptability and stability of the test equipment under high vacuum and low temperature condition.
Technical specification for Vacuum Heat Accumulation

1. Structure	Stainless steel expansion plate heat accumulation
2. Operating temperature range	-196oC~+150oC
3. Temperature uniformity	±5oC
4. Material	S30408
5. Total leakage rate	≤1.0×10-5Pa.L/S
6. Black paint half ring emissivity	≥0.9
7. Working pressure	≤1.0MPa
8. Design and manufacture diameter range	0.5m~20m

9. Application: To provide a low temperature, cold black background environment in the vacuum container.
Technical specification for Cryogenic helium cold plate

1. Structure	Stainless steel expansion plate heat accumulation
2. Operating temperature range	20k~423k
3. Temperature uniformity	±2oC
4. Material	S30408
5. Total leakage rate	≤2×10-6Pa.L/S
6. Black paint half ring emissivity	≥0.9
7. Working pressure	≤1.0MPa
8. Design and manufacture diameter range	Customized

9. Application: To provide a low temperature, cold black background environment to a specimen inside the vacuum container.
KM4000 Space Environment Simulation
Φ4000mm(ID)×5000mm(Straight side) Heat Accumulation
Vacuum container for leak detection

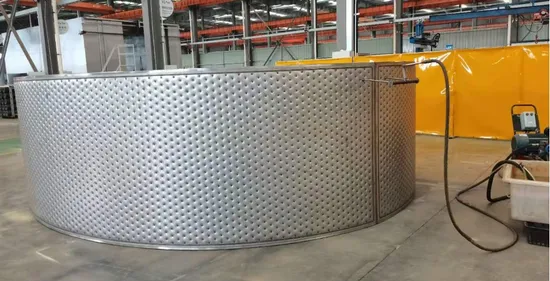

Heat accumulation and skeleton after assembly
Heat accumulation leak detection
Cryogenic helium cold plate
