PLD2016N FINCM Steel Structure Fabrication Machines Metal Vertical Drilling Machine

Product Description

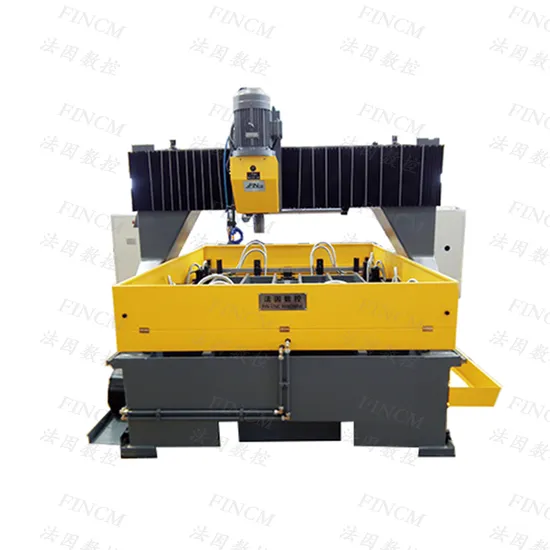

PLD2016N FINCM Steel Structure Fabrication CNC Plate Drilling Machine
Product Description

Product Parameters

Item	Name	Value
Size of workpiece	Thickness of workpiece (mm)	Max 100
	Width×Length (mm)	2000mm×1600mm (One piece)
		1600mm×1000mm (Two pieces)
		1000mm×800mm (Four pieces)
Drilling spindle	Spindle change methd
	Diameter of drilling head	Twist drill ≤Φ50mm
	The mode of speed adjustment	Transducer stepless speed adjustment
	Rotate speed	20-560r/min
	Stroke	180mm
Hydraulic clamping	Thickness of clamping	15-100mm
	Quantity of clamping cylinder(piece)	12 piece
	Clamping force	7.5KN
	Start-up clamping	Foot-switch
Cooling fluid	Mode	Forcing cycle
Hydraulic system	System pressure	6MPa(60kgf/cm2)
	Volume of oil tank	100L
Air pressure	Source of compressed air	0.4MPa(4kgf/cm2)
Motor	Spindle	15kW
	Hydraulic pump	2.2kW
	Chip removal motor	0.75kW
	Cooling pump	0.25kW
	Servo system of X axis	1.5kW
	Servo system of Y axis	1.0kW
Overall dimensions	L×Wx×H(mm)	About 5180×2450×2400mm
Weight(KG)	Main machine	About 4500kg
	Scrap Removal Device	About 800kg
CNC Axis	X,Y(point controling) Z(hydraulic feeding)
Travel	X Axis	2000mm
	Y Axis	1600mm
Maximum Positioning speed	10m/min

Key Outsourced Components List

NO.	Name	Brand	Country
1	Linear guide rail	CSK/HIWIN	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic valve	Atos	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
