Dzjx Plastic Particle Grains Vertical Mixer Dryer 500kg Vertical Mixer Blending Plastic

Product Description

Product Description
DZJX Plastic Particle Grains Vertical Mixer Dryer 500Kg Vertical Mixer Blending Plastic

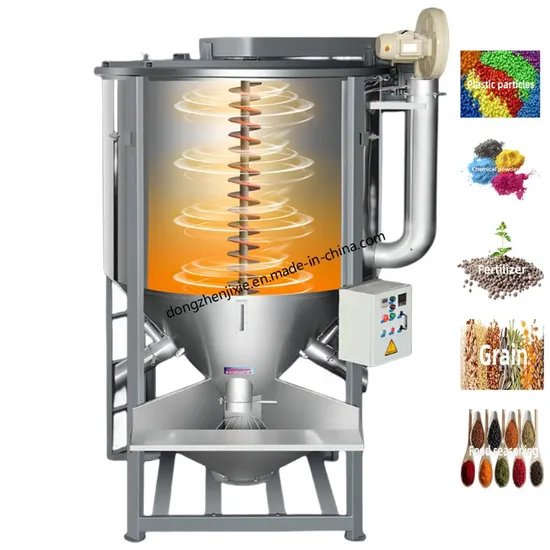

The working principle of a vertical mixer is to use the rapid rotation of the screw to lift the raw materials from the bottom of the barrel to the top, then scatter them in an umbrella shape, and return to the bottom. This way, the raw materials can be stirred up and down in the barrel, and a large amount of raw materials can be evenly mixed in a short time.If a heating device is installed, there will be a high-temperature airflow inside the entire material barrel. Due to the material flipping up and down, It can be dried in a short period of time.* Please Click Here To Contact Us,View More.Product detailsElectric Control BoxThe intelligent control system automatically controls the operation of the entire machine and can be set to start at a fixed time according to production needs.Feed InletEnlarged feeding port for fast feeding and convenient operation.FanDedicated high-pressure fan, fast penetration of hot air, and uniform heating of materials.MotorHigh quality pure copper motor, strong power, stable and durable. Cleaning PortThe movable suction plate design makes it more convenient to clean excess materials.Circulation Discharge PortLarge diameter discharge port, combined with stepless adjustment of the blade, can control the circulation mixing amount freely.OutletInclined port design, fast discharge, non clogging.Observation WindowTransparent and visible window design for easy observation of material levels.* Please Click Here To Contact Us,View More.
Detailed Photos
* Please Click Here To Contact Us,View More.
Product Parameters

Model	material	thickness	Motor power	diameter	Altitude
DZVH-300	Carbon steel/201/304	2.0mm	3kw	800	2000
DZVH-500		2.0mm	3kw	1100	2400
DZVH-1000		2.0mm	4kw	1350	2900
DZVH-1500		2.0mm	5.5kw	1600	3200
DZVH-2000		2.0mm	5.5kw	1800	3300
DZVH-3000		2.0mm	7.7kw	2000	3850

If you need more models, please contact us for customizationApplications
* Please Click Here To Contact Us,View More.Company ProfileXinxiang Dongzhen Machinery Co., Ltd.
* Please Click Here To Contact Us,View More.FAQ

---
