Leading-Edge dB-6146 Series Turret CNC Lathe - Delivering Precision and Versatility for a Wide Range of Applications

Product Description

Welcome to Dongguan Daben Intelligent Equipment Co., LtdModel characteristics
1.Atruly heavy-duty cutting turret machine that enhances the production efficiency of large workpieces.
2.Equipped with a high-rigidity servo turret, enabling fast tool changing and the processing of complex parts.
3.Paired with a 380mm 100-center-height, 12-station turret, ensuring strong stability and high precision.
4.The high rigidity of the servo turret allows for precision machining of large batches of steel, stainless steel, and heavy turning operations.
5.Side-mounted power tool modules with drilling, tapping, and milling functions for precise machining of various shaft components.
Standard configuration
- New generation system
- Japanese NSK bearings
- Japanese THK lead screws
- Integral cast iron bed
- German Rexroth linear guides
- Taiwan Jiancheng / Taiwan Pusen spindle
Experience the efficiency and precision of our cutting turret machine for your machining needs.
Technical parameters

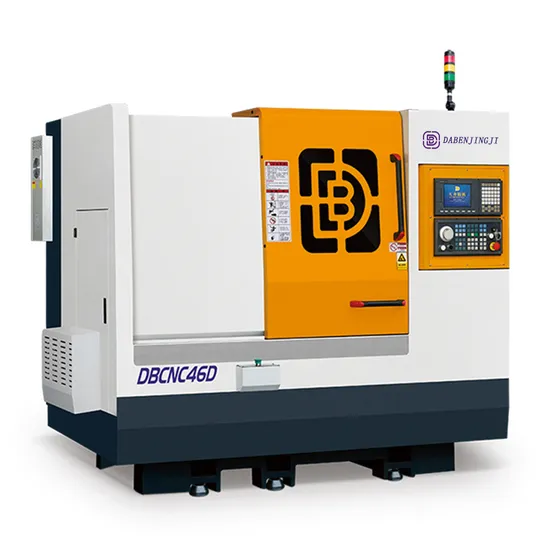

Model	DBCNC46D
Item	Describe	unit	Parameter
Spindle	Spindle nose end	/	A2-5
	Spindle bore	mm	56
	Bar diameter	mm	46
	Chuck/collet size	/	6 "/46 type collet
Machine range	Maximum slewing diameter	mm	400
	Maximum turning diameter	mm	350
	Maximum processing length	mm	250
Mechanical capacity	Maximum spindle speed	rpm	5000
	Maximum speed of milling axis	rpm	0-4000
	Maximum X/Z speed	m/min	25/15/25
Mechanical precision	Spindle indexing repeatability	/	±0.005°
	Spindle indexing positioning accuracy	/	±0.002°
	X/Z axis repeatability	mm	0.002mm
	X/Z axis positioning accuracy	mm	0.003mm
Axial travel	X-axis travel	mm	450
	Z-axis travel	mm	400
Turret	Turret model	/	100 center height
	Number of tool positions	T	12
Motor power	Spindle servo motor	KW(HP)	7.5-11.0
	X/Z axial servo motor	KW(HP)	2.4
	Servo motors for milling axes	KW(HP)	0.75
Other than	Height of spindle from ground center	mm	1000
	Total machine power	KW	About 16-20
	Machine external dimensions (L*W*H)	mm	About 2100*1500*1700
	Overall weight	KG	About 3000

Detailed Photos
Explore our High-Rigidity Servo Turret Solution - DB-6146 Series for precise steel and stainless steel processing. Ideal for CNC Lathe Centers, CNC Machines, and more. After-sales support included. 1-year warranty. Metal processing capabilities.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
Customer visit pictures
common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.

---
