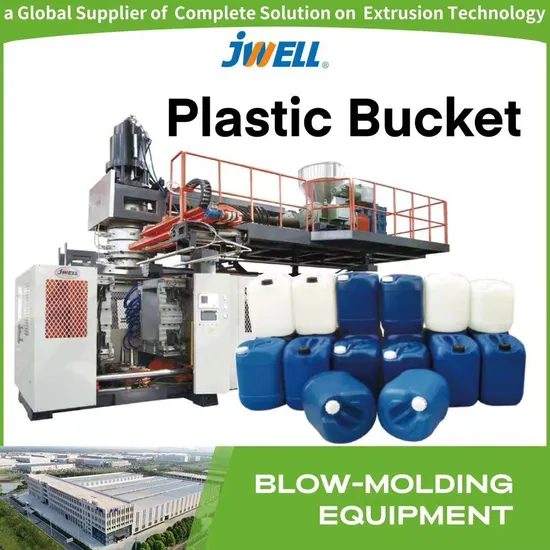

Jwell Small Utomatic Blowing Molding Machine for 100-220L Plastic Buckets and Double ′l′ Ring Bottles

Product Description

Product Parameters

Model	Unit	BM230
Max product volume	L	230
Dry cycle	Pc/h	280
Die head structure	type	Accumulating type
Main screw diameter	mm	120
Max plasticizing capacity(PE)	kg/h	350
Driving motor	KW	132
Oil pump motor power(Servo)	KW	37
Clamping force	KN	900
Space between platen	mm	800-1800
Platen size W*H	mm	1320*1600
Heating power of die head	KW	36
Machine dimension L*W*H	m	8.2*3.5*5.5
Machine weight	T	36
Total power	Kw	230

Detailed Photos

Product Description
Product Description:
The JWZ-BM160/230 Blow Molding Machine is designed to manufacture 100-220L plastic buckets and double 'L' ring bottles, meeting the highest standards for industrial packaging. This machine delivers exceptional performance, ensuring durable, high-quality products for demanding applications.
Key Features:
Versatile Production: Specially built for producing 100-220L plastic buckets and double 'L' ring bottles, widely used in industrial and chemical sectors. High Output Extrusion System: Maximizes production efficiency while maintaining uniform wall thickness and consistent quality. Accumulative Die Head Technology: Delivers precise control over material distribution, resulting in durable and reliable products. Optional Hydraulic Servo System: Enhances operational precision, energy efficiency, and stability for smoother performance. Optional Double-Layer Extrusion: Enables the creation of double-layer plastic buckets or bottles with enhanced strength and chemical resistance. Applications:
Plastic chemical buckets for industrial liquids and chemicals Heavy-duty plastic bottles for hazardous materials storage Agricultural product packaging such as fertilizers and pesticides Transport and logistics containers for large-capacity storage This advanced blow molding solution from JWELL is ideal for companies looking to produce plastic buckets and bottles with superior quality and efficiency, tailored to the demands of the industrial and packaging industries.
