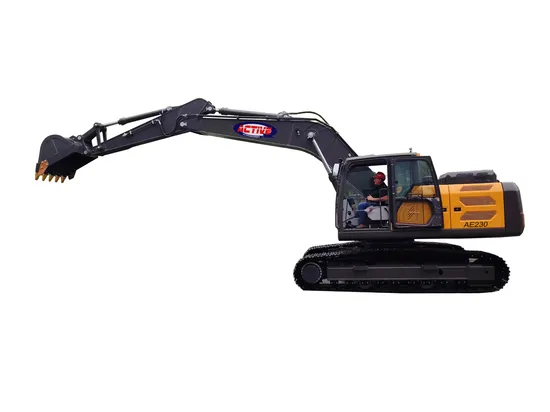

AE230 Versatile Hydraulic Excavator for Urban and Rural Applications

Product Description

The AE230Excavator
with an impressive operating weightof 23 tons, the E230 is equipped with an advanced pilot control system that promises precision and ease in every movement. Revel in its robust power and unwavering reliability, seamlessly tailored to conquer even the toughest conditions, guaranteeing efficiency and steadfast performance at every juncture.
AE230 CRAWLER EXCAVATOR
Configuration list

NO	DESCRIPTION
1	6BTAA5.9-C178-II engine , 133kw/2000rpm. China stage II 2-KOREA PNM brand pump 3-KOREA PARKER brand valves 4-Korea PNM brand slewing motor 5-China brand driving motor 6-Luxury full seal cabin with A/C, LCD display and LED lights etc. 7-Hydraulic pilot servo operation system 8-Steel track :600mm 9- Bucket capacity: 1.1m³ 10.with hydraulic quick hitch

>> SPECIFICATIONS:

ENGINE
Emission Standard	China Stage II
Make
Model	6BTAA5.9-C178-II
Power /Rotation speed	133kw(178HP)@2000rpm
Number of cylinder	6
TRACK SYSTEM
Maximum Travel speed(high/low)	5.6/3.3km/h
Width of track shoe	600mm
Number of upper roller per side	2
Number of bottom roller per side	9
PERFORMANCE PARAMETER
Rock Bucket capacity	1.1m³
Swing speed	12rpm
Maximum Grade ability	30°
Maximum Bucket digging force	150KN
Maximum Arm digging force	110KN
Hydraulic system pressure	34.3Mpa
Ground pressure	46kPa
Machine weight	22500kg
Operation weight	23500kg
Fuel tank	360L
Hydraulic oil tank	220L
Boom length	5700mm
Arm length	3800mm
MACHINE SIZE
Overall dimension (L*W*H)	9600mm*2990mm*3000mm
Height of cabin	3000mm
Track length on ground(Axle base)	3700mm
Track gauge	2390mm
Minimum Ground clearance	470mm
Min.slewing radius at front work device	3555mm
WORKING RANGE
Maximum Digging height	9410mm
Maximum Dumping height	6730mm
Maximum Digging depth	6480mm
Maximum Vertical digging depth	5925mm
Maximum Digging radius	9850mm

>> MAIN FEATURES:
The crawler excavator strikes the perfect balance of economy and power, being a middle type excavator seamlessly matched with a high-performance engine that offers formidable power while maintaining low noise, reduced consumption, and ensures environmental friendliness.
Furnished with top-tier imported brand main pumps and valves, among other components.
Equipped with premium imported driving and swing motors.
Incorporates a hydraulic pilot servo operation system alongside a hydraulic oil radiator to guarantee the machine operates at peak efficiency.
The expertly crafted structural components and working mechanisms ensure the machine boasts exceptional reliability and durability.
The inclusion of a breaking pipeline enhances the overall working performance.
Installed with a luxurious, fully sealed cabin featuring A/C, an LCD display, and LED lights, among other amenities.
The ergonomic design guarantees comfortable operation and ease of maintenance, enhancing the user experience.
>> CONDITIONS: QUOTATION TERMS: Terms based on FOB at Lianyungang, Tianjin, or Shanghai ports. Offer valid for 30 days from the issuance date. PACKING AND SHIPMENT DETAILS: Transport options include Bulk cargo or RO-RO. Packaging: Nude DELIVERY TERMS: Typically, delivery is 20 days post receipt of deposit/confirmation; specific timelines to be confirmed
upon order finalization. PAYMENT TERMS: Payment via T/T: 30% deposit with balance payable upon production completion and prior to shipment.

---
