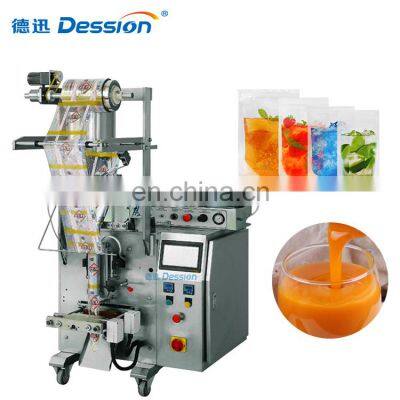

Juce pouch packing machine liquid juice sealing and packaging machine
Product Description
Dession automatic liquid packaging machine
Which is Recognized as a symbol of quality, high output, reality and simplicity. Easy and 30-100ml Small pouch can be made and moreover, any breakdown can be immediately located with consequential fast correction.Now let me introduce to you~
Product Details
Main Features
1. The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have passed the CE Standard.2. Computer controller is the first patent of China; inverter and power switch are all imported with advanced technology.3. Optional English or Chinese screen display, easy and simple operation.4. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.5. Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.6. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.7. Equipped with rolled cup device enables volume of packing changing anytime, loss reducing and improve productivity.8. Alarming function for specific output; automatic display of packaging speed.9. Optional coding equipment and with 1 to 3 lines for batch number and expiration date.10. Bag-making, filling, sealing, cutting, counting, thermal pressing of batch number can be achieved automatically and straightly.11. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.12. Bag-making equipment can be changed according to specific requirement of customers and products.
Application
SamplesIt is suitable for the packaging of various liquids and sauces such as liquid,sauce,soup,edible oil,liquid medicine,cream,seasoning sauce,honey,shampoo and shower gel.
Detailed Images
Packing Machine Technical Data
Model
| DS-320Y
|
|
Measuring
| Metering Pump
|
|
Measuring Range
| 30~500ml
|
|
Package Speed
| 30~80bags/min
|
|
Bag width
| 50~100mm
|
|
Bag Length
| 40~200mm
|
|
Film Width
| 30~220mm
|
|
Film Roll Dia.
| 300mm
|
|
Power
| 220V,50HZ,1.2KVA
|
|
Sealing
| Back seal,3/4 seal(optional)
|
|
Machine Size
| (L)640×(W)700×(H)1580
|
|
How the packing machine working?
Easy Control Touch Screen
Language: Standard English and Chinese. Any language can be customized.
PLC: Imported PLC microcomputer with interface and frequency control enables bag parameter setting more convenient and easier.
Film Roller
The film can be replaced easily on the film roller.
Various films adaptable: OPP/CPP,OPP/CE,MST/PE/PET/PE.
Pneumatic pump
The machine uses compressed air to control the drive ,a high degree of safety.The use of pneumatic controls and mechanical positioning,so filling high-precision accuracy can be controlled to ± 0.5%
Bag Former
#304 stainless steel bag former is for shaping the film into a bag.
Different bag width needs different bag former.
Durable Sealing Cutting Blades
High speed of fine and clean cutting and sealing bags.
Positioned stop function avoides sticking blades and wasting materials.
Certifications
If you want to get best price,please contact me!
MR KENNY LEE
Foshan Dession Packaging Machinery Co., Ltd.
Mobile/whatsapp/wechat: +86 13380522184
Website:
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* One year guranty for machine, two years guaranty for electrical part
* Engineers available for oversea service.
Our Company
FAQQ1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
Packing & Delivery
Payment
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
