Automatic Feeding Plate Beveling Machine

Product Description

Product Description

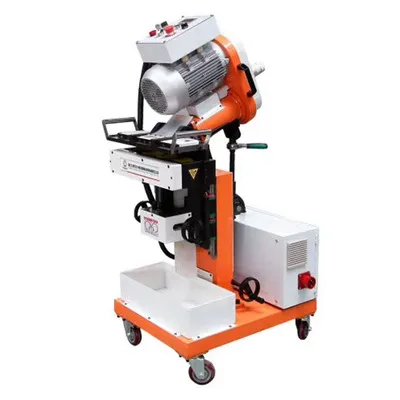

AUTOMATIC PLATE EDGE BEVELING MACHINE EPB-60
Main Features: 1. Cold processed, No sparks, Will not affect the material of plate.
2. Automatic feed, Automatic Marching , High efficiency, One person can operate multiple devices at the same time.
3. Smooth slope, Surface finish can be as high as Ra3.2- Ra6.3.
4. Numerical control display screen, Simple operation, Bevel speed can be adjustable , High precision.
5. Equipped with CNC blades , Low consumables.
6. Bevel Type : V, Y, K, X etc.
7. Can process carbon steel, stainless steel, alloy steel, titanium, and composite plates etc.
Product Parameters

Model	EPB-60
Voltage	AC 3PH 380V 50HZ
Total power	3400W
Spindle speed	1050r/min
Feed speed	0-1500mm/min
bevel width	1-45mm
single bevel width	1-15mm
bevel angle	10°-60°
Clamp thickness	6-40mm
Plate width	>100mm
Plate length	>300mm
Worktable height	820-860mm
N.W	250KGS
Process material	CS,SS,Aluminum,bronze.compound plate

Note:Non-standard machines are aviable according to customer's requirement. Detailed Photos
Customers Feedback
FAQ
1. How to choose a suitable model?
RE: Before select the model, we need to know more details about the pipe, such as the I.D, O.D, wall thickness, the material of the pipe and the environment of the site and the requirement of the end face. Then it will be more convent for all of us to make an immediate decision. Thanks!
2. Do you have another choice about the driven?
RE: Of course, we have widely variety of choices for you, such as the electric, pneumatic, hydraulic and NC.
3. About the type of the beveling?
RE: The normal type is the v and U, if you have any special requirement, please let us know it, I believe that our engineer can provide a solution for you.

Company Profile
Henan Ework Industrial Equipment Co., Ltd. is a professional company dedicated to the R&D, production and sales of piping machines and tools related to pipes.In line with the business tenet of "piping solutions expert" and the mission of "make work easy and efficient", we haveindependently developed and produced a series of products that customers love. Our product series mainly include pipe cutting machines, pipe beveling machines, pipe bending machines, pipe threading machines, HDPE pipe machines and related tools. These products are widely used for stainless pipe, steel pipe, galvanized pipe, mild steel and plastic pipes.Our company not only has a professional and skilled workforce but also has established a complete and complete quality management system. We are committed to providing customers with world-class products and look forward to sincere and friendly cooperation with our customers to have a good business together.

---
