High-speed Computerized Chain Stitch Multi-needle Quilting Machine

Product Details

Product Details

Product Description

Product Description

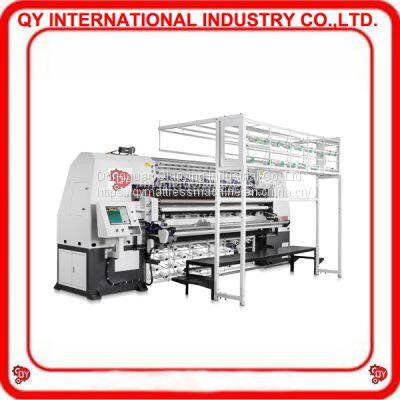

QYCS-96-3-6 Computerized Chain Stitch Multi-needle Quilting Machine
It is widely used for mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.
Technical parameters:
ModelQYCS-96-3-6
Dimension(L*W*H)5300*1600*2150mm
Quilting Width2450mm
Needle Rows3
Space between needle rows3"+2", 3"+3"
Space between needle25.4mm
X-axis movement displacement300mm(or above)
Thickness of quiltingequal or less than 80mm
Stitch length1-12mm
Speed of operation60-230(m/hour)
Model of needle24/180,23/160 ,22/140, 21/130
Quilting speed1200(r/min)
Voltage380V/50HZ 220V/60HZ
Total Power8KW
Gross Weight5300KG

Main Features:
1. New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2. 360°Multi-span and independent patterns, automatic thread trimming function.
3. Self-developed system, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability.
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function.
6. Adopt international advanced slice thread trimming function, effectively reduce the probability thread jump, more stable.
7. Strong function of pattern-combining and multi-span( Tack&Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
9. Infrared safety protection and Auto-stop sensors detection function.
QYLS-64/76/96/128 Computerized Shuttle Multi-needle Quilting Machine
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc. This quilting machine bears the following features:
Technical parameters:
Model64 Series76 Series
QYLS-64-2-3QYLS-64-3-4.5/5/6QYLS-76-2-3QYLS-76-3-5/6
Dimension(L*W*H)3800*1100*18003800*1100*18004000*1100*18004000*1100*1800
Quilting Width1650mm1650mm1930mm1930mm
Needle Rows23/3/323
Space between needle rows3"3"+1.5"/2"/3"3"3"+2"/3"
Space between needle25.4mm19.05/25.4/25.4mm25.4mm25.4mm
X-axis movement displacement254mm228.6/228.6/304.8mm254mm254mm
Thickness of quiltingStitch length2-6mm2-6mm2-6mm2-6mm
Speed of operation20-12020-12020-12020-120
Model of needle16#,19#16#,19#16#,19#16#,19#
Quilting speed300-800300-800300-800300-800
Voltage380V/220V380V/220V380V/220V380V/220V
Total Power3.5Kw3.5Kw3.5Kw3.5Kw
Gross Weight3300Kg3300Kg3500Kg3500Kg

Model96 Series128 Series
QYLS-96-2-3QYLS-96-3-5/6QYLS-128-2QYLS-128-3
Dimension(L*W*H)4900*1100*18004900*1100*18005700*1100*18005700*1100*1800
Quilting Width2450mm2450mm3300mm3300mm
Needle Rows23/323
Space between needle rows3"3"+2"/3"3"3"+3"
Space between needle25.4mm25.4mm25.4mm25.4mm
X-axis movement displacement254mm304.8mm254mm304.8mm
Thickness of quiltingStitch length2-6mm2-6mm2-6mm2-6mm
Speed of operation20-12020-12020-12020-120
Model of needle16#,19#16#,19#16#,19#16#,19#
Quilting speed300-800300-800300-800300-800
Voltage380V/220V380V/220V380V/220V380V/220V
Total Power4Kw4Kw5.5Kw5.5Kw
Gross Weight4500Kg4500Kg5300Kg5300Kg

Main Features:
1. Computerized speed governing, max.800r/min.
2. Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy
and durable.
3. Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4. Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5. Dual clutch device, to solve the synchronization problem of rollers in front and back.
6. Using high-precision and high rigidity imported screw mandrel
7. 360° free quilting come with unlimited multi-span quilting independent patterns.
8. Automatic thread-break detection unit.
9. Infrared sensor make sure more safety operation.
10. The machine runs smoothly, low noise, high precision, low thread-break rate and easy to operate.
