Manufacturer | SHANDONG DINGYUAN MACHINERY CO.,LTD |
| Brand | SHANDING |

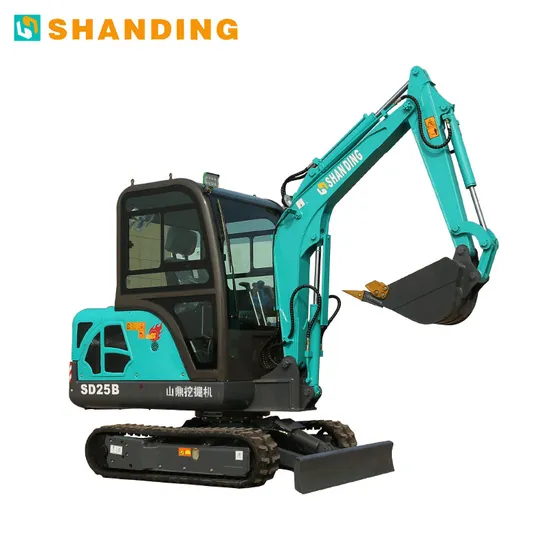

| Model | SD25B |
| Operating mode | Hydraulic lever |
| Operating weight | 2500kg |
| Bucket capacity | 0.1cbm |
| Bucket width | 540mm(Any size can be customized) |
| Engine | CHANGCHAI ZN490 , 20kw/2200r/min Can change Yanmar engine |
| Pump | FUTAI 312 |
| Valve | HUSCO ( USA ) |
| Walking motor | EATON OMB-130 (USA) |
| Rotary motor | EATON SW2.5K-195 (USA) |
| Cylinder | Three cylinder, Water cooling |
| Walking speed | 2.9km/h |
| Track type | Rubber Track |
| Closed cab | No , closed cab can be installed |
| Climb ability | 35ยบ |
| Bucket digging force | 16 kn |
| Arm digging force | 14.1 kn |
Physical Size | |
| Total (length*width*height) | 4150*1350*2300 mm |
| Track length*width | 1620mm*260mm |
| Platform ground distance | 400 mm |
| Chassis width | 980 mm |
Working Range | |
| Max.digging depth | 2650 mm |
| Max.digging height | 3750 mm |
| Max.digging radius | 4300 mm |
| Min. radius of gyration | 1600 mm |
