Air Filter Combination Gfr400-15-a-F1 for Hls120 Hls180 Concrete Mixing Batching Plant

Product Description

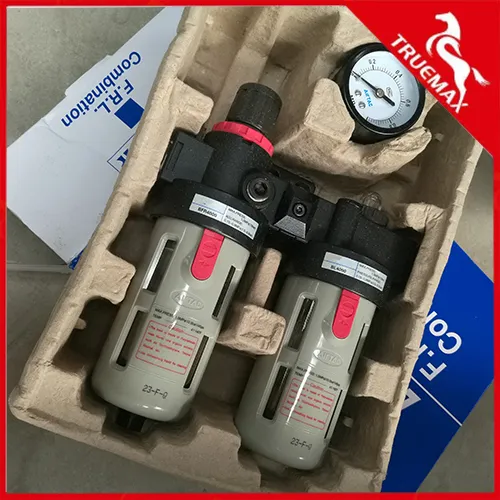

Air Filter combination GFR400-15-A-F1 FOR Hls120 Hls180 Concrete Mixing Batching Plant

Product Details

ItemModel		YGFC200-06	YGFC200-08	YGFC300-08	YGFC300-10	YGFC300-15	YGFC400-10		YGFC400-15
Caliber Size		PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8		PT1/2
Fluids		Air
Filtration		40μ50μ 40μ or 50μ
Applicable Pressure Range		0.15~0.9Mpa(20~130Psi)
OperatingPressure		1.0Mpa(145Psi)
Max Pressure		1.5Mpa(215Psi)
OperatingTemperature		5~60ºC
Capacity Of Filter Cup		10CC	40CC					80CC
Capacity Of Oil Feed Cup		25CC	75CC					160CC
Suggested Lube		ISO VG 32 ISO VG 32or Same Grade Oil
Weight		425Vg	980g				1950g
(L/min) Standard Rated Flow (L/min)	Regulator & Filter	YGFR200-06	YGFR200-08	YGFR300-08	YGFR300-10	YGFR300-15	YGFR400-10		YGFR400-15
	Lubricator	YGL200-06	YGL200-08	YGL300-08	YGL300-10	YGL300-15	YGL400-10		YGL400-15

Series code	YGFC200:G200(G200 Series Tow-point Combination), YGFC300:G300(G300 Series Tow-point Combination), YGFC400:G400(G400 Series Tow-point Combination)
Caliber Size	06:PT1/8 ,08:PT1/4 ,10:PT3/8 ,15:PT1/2
Drian Type	Blank:Pressure Differential Differential Drain Style, M:Standard Manual Drain Type , A: Auto Drain Type
Type code	Blank: Standard Type, L:Low pressure Type
Pressure Gauge Code	Blank:Additional table , N:No strings attached table
Pressure Gauge Type	F:Square table , C:Traditional table
Calibration units	1:Mpa , 2:Psi
Filter Precision	Blank:40μ , W:5μ
Tooth Appearance Code	Blank:PT PT Tooth Code , G:PS PS Tooth Code , T:NPT NPT Tooth Code

ItemModel	GFC200	GFC300	GFC400
Body	Aluminum
Umbrella Baffle	POM
Air Guider	POM
FilterElement	40μ:Tin Copper; 50μ:Fiber
Drain Bowl	PC
Leak Post	POM
Pressure Knob	POM
Adjusting Seat	POM
Adjusting Spindle	HPB5-1
Diaphragm	SUS304 SUS304Corered with rubber
Pressure Spring	Stainless steel
Spring	Stainless steel
Filling plug	Brass
Bowl	PC
Ejector pin	Brass
Oil bowl	PC
Bowl Guard	--	SPCC

Notice: Delivery time : (3-5 days) Packinf: Carton or wooden case packing Warranty: 3-12 months 24 hours online service
Company information:

TRUEMAX specialized in the production of construction machinery spare parts, such as: concrete batching plant, concrete truck mixer, concrete placing boom, concrete pump, concrete line pump, concrete truck-mounted pump, building hoist.

---
