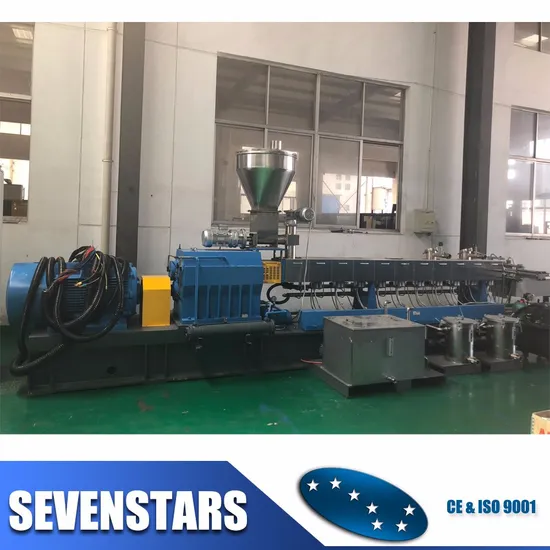

2017 Hot Pet Granules Pellets Pelletizing Machine

Product Description

2017 hot pet granules pellets pelletizing machine
The plastic raw materials which have been enhancing, filling and blending should be used for injection or extrusion molding after granulation. For how to choose the appropriate granulation methods, our professional team will provide you professional technical support.
Characteristics:
1.the gear box
1)rotating speed:MAX 600~1500RPM
2)combining host transmission box speed reduction and torque distribution part together,using
three axis style design, with compact structure. Speed reduction, torque distribution and two output
shaft radia bearing all use NSK bearings.
3)Gear is 6 grade which is a high precision. High speed overloading hard-tooth surface.
The materials are 20CrNi2MoA or 20CrMnMo, HRC 60/62.
2.the feeding system
Various forms of feeding structure and system single screw extruder, twin screw, hollow spring type,
mesh and mesh, can cover the various material status
3.screw and barrels
Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to
suit different material. Screw component made of high speed & wear-resisting steel.
The screw elements are designed accurately and made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heater treatment.
BRP twin screw pelletizing machine technical parameter:

MModel	Screw Diameter D (mm)	screw L/D	screw speed N (r/min)	Main motor power P(KW)	Screw Torque T (N.m)	Torque Level T/N³	Capacity Q(kg/h)
BBRP20	21.7	28~40	600	3/4	30	4.8	3-15
BBRP35	35.5	28~56	500	11 / 15	115	4.2	20-70
BBRP50	50.5	28~56	500	45 / 55 / 75	425	5.1	80-150
BBRP52B	51.4	28~56	400/500/600/800	45 / 55 / 75	425	5.1	120-280
BBRP65	62.4	28~56	500 / 600	55 / 75 / 90	675	4.8	150-300
BBRP65B	62.4	28~56	400/500/600/800	90/110	675	4.8	200-500
BBRP75	71	28~56	500 / 600	90 /110 /132	1005	4.6	300-550
BBRP75B	71	28~56	400/500/600/800	110 /132/180	1005	4.6	300-700
BBRP95	93	28~56	400 / 500	250 / 315	2815	5.9	600-1000

Details adn Final product:
Company information
Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc country and region.Our products enjoy a high reputation home and abroad.

---
