| US$13,000.00-14,000.00 | 1 Piece (MOQ) |

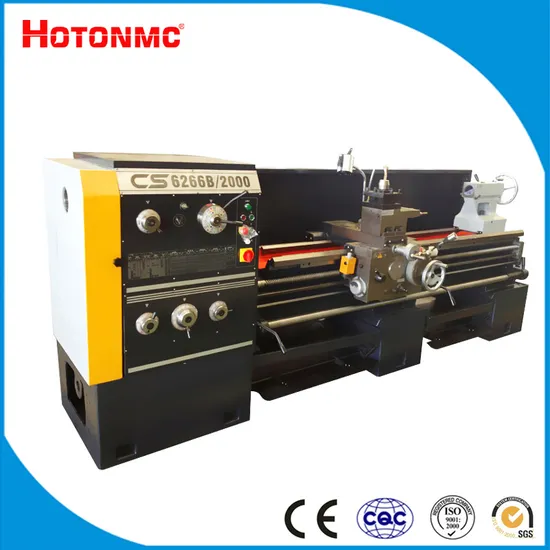

| SPECIFICATIONS | UNIT | CS6140 CS6240 CS6140B CS6240B | CS6150 CS6250 CS6150B CS6250B | CS6166 CS6266 CS6166B CS6266B | CS6150C CS6250C | CS6166C CS6266C | |||||||
| Capacity | Max. swing dia. over bed | mm | Φ400 | Φ500 | Φ660 | Φ500 | Φ660 | ||||||
| Max. swing dia.over cross slide | mm | Φ200 | Φ300 | Φ420 | Φ300 | Φ420 | |||||||
| Max. swing dia.in gap | mm | Φ630 | Φ710 | Φ870 | Φ710 | Φ870 | |||||||
| Max. workpiece length | mm | 750/1000/1500/2000/3000 | |||||||||||
| Max.turning length | 700/950/1450/1950/2950 | ||||||||||||
| Spindle | Spindle bore diameter | mm | Φ52 Φ82 (B series)Φ105(C series) | ||||||||||
| Taper of spindle bore | MT6 Φ90 1:20 (B series) Φ113(C series) | ||||||||||||
| Type of spindle nose | no | ISO 702/III NO.6 bayonet lock, ISO 702/II NO.8 com-lock type(B&C series) | |||||||||||
| Spindle speed | rpm | 24 steps 9-1600 | 12 steps 36-1600 | ||||||||||
| Spindle motor power | KW | 7.5 | |||||||||||
| Tailstock | Diameter of quill | mm | Φ75 | ||||||||||
| Max. travel of quill | mm | 150 | |||||||||||
| Taper of quill (Morse) | MT | 5 | |||||||||||
| Turret | Tool O.D. size | mm | 25X25 | ||||||||||
| Feed | Max. X travel | mm | 145 | ||||||||||
| Max. Z travel | mm | 320 | |||||||||||
| X feed range | mm/r | 93 kinds 0.012-2.73 | 65 kinds 0.027-1.07 | ||||||||||
| Z feed range | mm/r | 93 kinds 0.028-6.43 | 65 kinds 0.63-2.52 | ||||||||||
| Metric threads | mm | 48 kinds 0.5-224 | 22 kinds 1-14 | ||||||||||
| Inch threads | t.p.i | 48 kinds 72-1/4 | 25 kinds 28-2 | ||||||||||
| Module threads | πmm | 42 kinds 0.5-112 | 18 kinds 0.5-7 | ||||||||||
| Diametric pitch threads | t.p.i.π | 42 kinds 56-1/4 | 24 kinds 56-4 | ||||||||||
| Dimensions | mm | 2382/2632/3132/3632/4632 | |||||||||||
| 975 | |||||||||||||
| 1230 | 1270 | 1350 | 1270 | 1450 | |||||||||
| Weight | Kg | 1975/2050/ 2250/2450 /2850 | 2050/2100 /2300/2500 /2900 | 2150/2200/ 2400/2600 /3000 | 2050/2100 /2300/2500 /2900 | 2150/2200 /2400/2600 /3000 | |||||||
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
