Product Details
Product Description
Product Description
Factory
Manufacturer Product Number

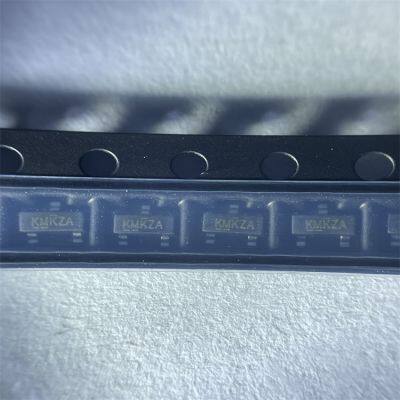

IRLML0100TRPBF
Category
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
Mfr
Infineon Technologies
Series
HEXFET®
Package
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status
Active
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
100 V
Current - Continuous Drain (Id) @ 25°C
1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Rds On (Max) @ Id, Vgs
220mOhm @ 1.6A, 10V
Vgs(th) (Max) @ Id
2.5V @ 25µA
Gate Charge (Qg) (Max) @ Vgs
2.5 nC @ 4.5 V
Vgs (Max)
±16V
Input Capacitance (Ciss) (Max) @ Vds
290 pF @ 25 V
FET Feature
-
Power Dissipation (Max)
1.3W (Ta)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
Micro3™/SOT-23
Package / Case
TO-236-3, SC-59, SOT-23-3
Base Product Number
IRLML0100
Factory Pack Quantity: 3000
PRICE: 0.18-0.51
>>
