Product Details
Product Description
Product Description

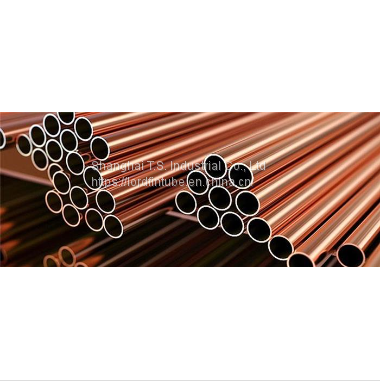

Copper Nickel Tube
Copper nickel tube is used for a variety of industries; including marine environments, power generation, offshore, oil & gas, and defense sectors. Drawn copper nickel tube combines cold and hot working properties, the highest degree of seawater corrosion and erosion resistance, and great strength. Typical users are distillation and desalination plants and marine coolers and heat exchangers.
We produce straight-drawn copper nickel tubes as well as copper-nickel tube components from 70/30 copper nickel and 90/10 copper-nickel alloys. All of our drawn copper nickel tubes are manufactured, cleaned, and supplied to the most popular specifications in Europe and America such as C70600, C71500, CN102, CN107, Kunifer 10, Kunifer 30, NES 779, NES 780, DIN 86019, CuNi10Fe1Mn, CuNi30Mn1Fe, DEF-STAN 02-779, DEF-STAN 02-780, CW352, CW354H.
Specifications
CN102, CN107, C70600, C71500, CW352H, CW354H, Kunifer 10, Kunifer 30, NES 779, NES 780, DIN 86019, CuNi10Fe1Mn, CuNi30Mn1Fe, DEF-STAN 02-779, DEF-STAN 02-780
Applications
Evaporator Tubing, Condenser Tubes, Heat Exchanger Tubing, Leak Detector Tube, Oil Well Pump Liner, Ferrules, Bourdon Tubes, Seawater Pipework, Offshore Fire Water Systems, Brake Pipe, Cryogenic Tube.
70/30 copper nickel and 90/10 copper-nickel alloys have applications in the handling of hot brine, they are frequently employed in condenser and heat exchangers for tubes, tube plates, and baffles where resistance is required to seawater corrosion, erosion, impingement, and biological fouling.70/30 copper nickel and 90/10 copper-nickel alloys are available in most product forms, including plate, drawn tube, pipe, and fittings.
Copper Nickel (also known as Cupro Nickel/Kunifer) is an alloy widely used in Marine, Naval, and Oil & Gas applications. These alloys have excellent corrosion resistance in seawater, low biofouling, and good weldability. The material in copper-nickel is ductile through its improved strength and corrosion resistance.
CuNi 90/10 is mainly used in seawater systems for Naval, Commercial Marine, and Oil & Gas applications.
CuNi 70/30 has a higher strength due to the increased nickel content and is able to resist corrosion at high velocities in Naval applications.
We produce straight cold drawn copper nickel tubes as well as copper-nickel tube components from CuNi 70/30 and CuNi 90/10 alloys. All of our drawn copper nickel tubes are manufactured, cleaned, and supplied to the most popular specifications in Europe, America, and other international specifications.
We have a wide range of stock in CuNi 90/10 and CuNi 70/30 for supply from stock and for redrawing to customer requirements.
Grades available to the below designations:
COPPER-NICKEL
| ISO
| BSI
| BS EN
| UNS
|
Copper Nickel 90/10 (Kunifer 10)
| CuNi10Fe1Mn
| CN102
| CW352H
| C70600
|
Copper Nickel 70/30 (Kunifer 30)
| CuNi30Mn1Fe
| CN107
| CW354H
| C71500
|
Copper Nickel 66/2/2 (Yorcoron)
| CuNi30Fe2Mn2
| CN108
| CW353H
| C71640
|
C70600 (C706) & C71500 (C715), Copper-nickel offers excellent corrosion resistance, especially in marine saltwater environments. The main, wrought copper-nickel alloys chosen for seawater service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance. Some of the primary uses for C706 include copper nickel fittings (CuNi Fittings) as well as condensers and exchanger shells.
Hot Tags: copper-nickel tube C70600, China, suppliers, manufacturers, price
>>
