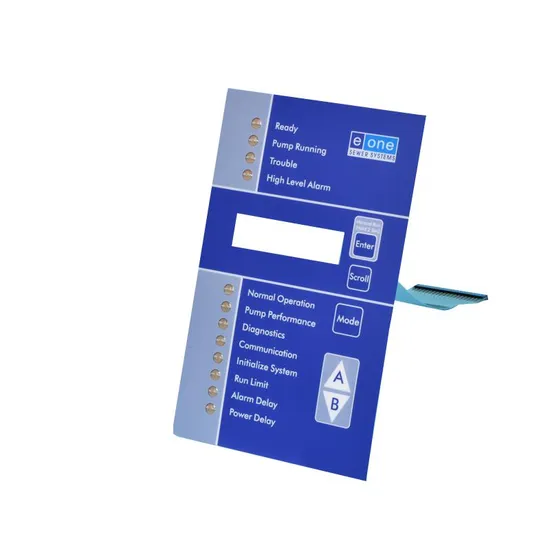

Printing Circuit Push Button Control Keypad Membrane Switch

Product Description

Printing Circuit Push Button Control Keypad Membrane Switch:
Structure and specification:
1.1) Size: 335.00mm * 138.00 mm;
1.2) S/S Printing Colors: 10 colors of s/s printing; ( 6 colors for Overlay + 4 colors for printed circuit );
1.3) keys: 32 keys with embossing ( 27keys with metal domes and embossing)
1.4) Structure: Overlay: EBG130+ DT8025 + PET0.1 + DT8125 + PET0.125 + 3M467MP(with EMC layer)
1.5) Connector: 25pin (ZIF)
1.6) LED: 31PCS
Note:
1. Below the keys are insertion strips( the color and inscription on it ). The area in the black frame is transparent.
2. The material of insertion strips is EBG130.
We can provide membrane switches\flexible circuit\silicone rubber keypads with very competitive price and high quality products, also welcome OEM, ODM orders.

	Technical Specification Of Membrane Swithc
wire lead resistance:	<1Ω/CM		Life time:	>1 Million times
rated current:	25-100mA,0~30V DC		Operation Temperature:	-104°F~158°F
Rated Voltage:	<50V, DC		Operation Humidity:	at104°F,<98%RH
Insulation resistance:	<100MΩ,250V DC		Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm		Base Material voltage withstand:	1500 V DC
	tactile type:0.3-1.5mm		Tail flexiblility:	any angle within 180 degree

---
