6HP Inverter Air to Water Heat Pump with Evi Compressor

Product Description

PRODUCTION DESCRIPTION
R32 or R410a DC Inverter Heat Pump (ErP A++, ErP A+++) with EVI compressor technology and full inverter technology for extremely cold area and high outlet water temperature. Equipped with heating, cooling and domestic hot water functions for families, apartments, small industrial sites, etc. Additionally, it can work with solar, boiler or electric heater according to the practical condition of the heating system. With R410a refrigerant, most advance inverter technology & intelligent defrost function to work well in -35ºC, which is much more higher efficiency than normal air source heat pump. KEY FEATURES
1) Extended working range down to -35°C ambient (low ambient type)
2) 5 modes: heating only, heating+DHW, cooling only, cooling+DHW, DHW only
3) Low running costs and high efficiency
4) Long-life and corrosion resistant composite cabinet stands up to severe climates
5) Famous compressor ensures outstanding performance and durability
6) LCD touch screen with self-diagnostic control function
7) With control output for three-way valve
8) Easy operation and simple installation
9) WIFI control function is optional
KEY COMPONENTS
High Energy Saving & High Power Technology Blueway has its own R&D team & professional test laboratory, which has developed mature control system. Inverter units with accurate temperature control by DC inverter technology, with multi-protection, automatic defrost, WI-FI control function, etc.
Intelligent Control The units are supplied with micro processor based digital controller with LCD touch display. The controller is programmed to provide a maximum protection to the heat pump system and accurate temperature control. The control panel is completely factory wired with all accessories and terminals included.
SWEP Plate Heat Exchanger
High corrosion resistance
High thermal efficiency
High working temperature
High Efficiency Compressor High efficienty and energy saving
Quiet operation due to less moving parts
Adopt famous brand rotary or scroll compressor
High Efficiency Class A Pump Energy saving pump with constant volume or pressure adjustment function. German Wilo or Chinese Shinoo water pump is optional.
APPLICATION DIAGRAM
Split Type:
Monoblock Type: TECHNICAL SPECIFICATIONS
Options: EVI Low Ambient & Normal Ambient Type (Split & Monoblock Type)

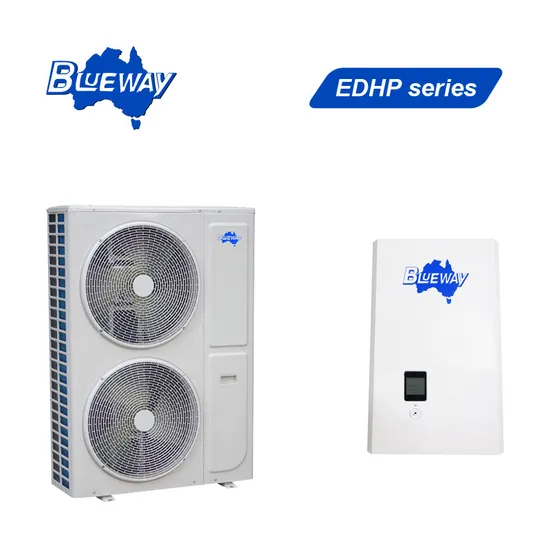

DC Inverter Heat Pump (Split Type)
Model			EDHP-09S	EDHP-14S	EDHP-16S	EDHP-24S	EDHP-30S
HP			3	5	6	8	10
Power supply	Indoor unit	V/Hz/Ph	220-240/50/1, 380-415/50/3
	Outdoor unit	V/Hz/Ph	220-240/50/1			380-415/50/3
+7°C/35°C Floor heating	Heating capacity	kW/h	9	14	16	24	30
	Power input	kW	2	3.04	3.5	5.4	7.3
	COP	-	4.5	4.6	4.56	4.45	4.1
+2°C/35°C Floor heating	Heating capacity	kW/h	8.5	12.5	14.3	21.7	28
	Power input	kW	2.18	3.13	3.7	5.5	7.2
	COP	-	3.9	4.0	3.92	4.0	3.9
-7°C/35°C Floor heating	Heating capacity	kW/h	7.1	11	13	18.9	24
	Power input	kW	2.4	3.61	4.4	6.52	8
	COP	-	2.96	3.05	2.95	2.9	3
+7°C/45°C Radiators	Heating capacity	kW/h	8.5	13	15	20.6	29
	Power input	kW	2.4	3.6	4.41	5.9	8.5
	COP	-	3.54	3.62	3.4	3.5	3.4
-7°C/45°C Radiators	Heating capacity	kW/h	6.8	10.2	12.5	18.0	22
	Power input	kW	2.9	4.23	5.2	7.6	9.6
	COP	-	2.34	2.41	2.4	2.37	2.3
+7°C/55°C Hot water	Heating capacity	kW/h	6	12	14	20	24
	Power input	kW	2.26	4	4.91	7.1	9.2
	COP	-	2.65	3	2.85	2.8	2.6
-12°C/41°C Floor heating	Heating capacity	kW/h	6	10.5	11.5	17.8	22
	Power input	kW	2.6	4.5	5.1	7.74	9.6
	COP	-	2.3	2.36	2.26	2.3	2.3
+35°C/7°C Fan coil	Cooling capacity	kW/h	7	11	13	20	24
	Power input	kW	2.6	3.95	4.81	7.25	9.2
	EER	-	2.7	2.8	2.7	2.76	2.6
Energy efficiency class	Floor heating	-	A++	A++	A++	A++	A+
	DHW mode	-	A+	A+	A+	A+	A+
Heating operation range	Ambient	°C	-25~25
	Water side	°C	18~60
Cooling operation range	Ambient	°C	10~43
	Water side	°C	7~22
Domestic hot water operation range	Ambient	°C	-25~35
	Water side	°C	25~60
Rated water flow rate		m³/h	1.5	2.4	2.8	4.1	5.2
Rated pressure drop		kPa	30	45	45	40	47
Max. working pressure	Refrigerant	Bar	44	44	44	44	44
	Water	Bar	7	7	7	7	7
Controller		-	Micro processor based digital wire controller with LCD display
External cabinet		-	Galvanized steel with powder coating
Compressor	Type	-	Rotary			Rotary/Scroll
	Qty.	Nos.	1	1	1	1	1
	Refrigerant	-	R32/R410a
Water heat exchanger		-	SUS 316 Brazed plate heat exchanger
Electric heater		kW	3/6			6
Water pump		-	DC type, Wilo/Shinhoo			Shinhoo
Expansion tank		L	5	8		10
Water connection	Inlet&Outlet	inch	1"	1"	1"	1"	1-1/4"
Noise level	Indoor Unit	dB(A)	42	42	42	42	42
	Outdoor Unit	dB(A)	52	56	58	59	61
Net dimension (W*D*H)	Indoor Unit	mm	522*296*863.5	522*296*863.5	522*296*863.5	522*296*863.5	602*308*880
	Outdoor Unit	mm	950*445*800	976*410*1273	940*448*1365	1150*480*1565	1405*590*1626
Net weight	Indoor Unit	kg	55	55	55	55	70
	Outdoor Unit	kg	58	90	100	120	175
Rough loading	20GP/40GP/40HQ	set	24/48/48	23/48/52	23/48/52	19/41/41	12/27/27
Notes: 1.The values of heating(cooling) capacity/power input/COP(EER) are based on measurement of EN14511 standard.Usage environment, such as operation of the heat pump, room temperature and controller adjustments, may cause disparities between practically determined and these values; 2.Sound pressure level measured at distance of 1m from the device; 3.For wall-mounted type, the compressor is located in the outdoor unit; Blueway reserves the rights to modify the above specifications without notice for product improvement. Please contact us for updated information.

DC Inverter Heat Pump (Monoblock Type)
Model			EDHP-09M	EDHP-14M	EDHP-16M	EDHP-24M	EDHP-30M
HP			3	5	6	8	10
Power supply		V/Hz/Ph	220-240/50/1			380-415/50/3
+7°C/35°C Floor heating	Heating capacity	kW/h	9	14	16	24	30
	Power input	kW	2	3.04	3.5	5.4	7.3
	COP	-	4.5	4.6	4.56	4.45	4.1
+2°C/35°C Floor heating	Heating capacity	kW/h	8.5	12.5	14.3	21.7	28
	Power input	kW	2.18	3.13	3.7	5.5	7.2
	COP	-	3.9	4.0	3.92	4.0	3.9
-7°C/35°C Floor heating	Heating capacity	kW/h	7.1	11	13	18.9	24
	Power input	kW	2.4	3.61	4.4	6.52	8
	COP	-	2.96	3.05	2.95	2.9	3
+7°C/45°C Radiators	Heating capacity	kW/h	8.5	13	15	20.6	29
	Power input	kW	2.4	3.6	4.41	5.9	8.5
	COP	-	3.54	3.62	3.4	3.5	3.4
-7°C/45°C Radiators	Heating capacity	kW/h	6.8	10.2	12.5	18.0	22
	Power input	kW	2.9	4.23	5.2	7.6	9.6
	COP	-	2.34	2.41	2.4	2.37	2.3
+7°C/55°C Hot water	Heating capacity	kW/h	6	12	14	20	24
	Power input	kW	2.26	4	4.91	7.1	9.2
	COP	-	2.65	3	2.85	2.8	2.6
-12°C/41°C Floor heating	Heating capacity	kW/h	6	10.5	11.5	17.8	22
	Power input	kW	2.6	4.5	5.1	7.74	9.6
	COP	-	2.3	2.36	2.26	2.3	2.3
+35°C/7°C Fan coil	Cooling capacity	kW/h	7	11	13	20	24
	Power input	kW	2.6	3.95	4.81	7.25	9.2
	EER	-	2.7	2.8	2.7	2.76	2.6
Energy efficiency class	Floor heating	-	A++	A++	A++	A++	A+
	DHW mode	-	A+	A+	A+	A+	A+
Heating operation range	Ambient	°C	-25~25
	Water side	°C	18~60
Cooling operation range	Ambient	°C	10~43
	Water side	°C	7~22
Domestic hot water operation range	Ambient	°C	-25~35
	Water side	°C	25~60
Rated water flow rate		m³/h	1.5	2.4	2.8	4.1	5.2
Rated pressure drop		kPa	30	45	45	40	47
Max. working pressure	Refrigerant	Bar	44	44	44	44	44
	Water	Bar	7	7	7	7	7
Controller		-	Micro processor based digital wire controller with LCD display
External cabinet		-	Galvanized steel with powder coating
Compressor	Type	-	Rotary			Rotary/Scroll
	Qty.	Nos.	1	1	1	1	1
	Refrigerant	-	R32/R410a
Water heat exchanger		-	SUS 316 Brazed plate heat exchanger
Electric heater (optional)		kW	3/6			6
Water pump (optional)		-	DC type, Wilo/Shinhoo			Shinhoo
Expansion tank (optional)		L	5	8		10
Water connection	Inlet&Outlet	inch	1"	1"	1"	1"	1-1/4"
Noise level		dB(A)	52	56	58	59	61
Net dimension (W*D*H)		mm	1160*430*820	1079*430*1273	1079*430*1368	1150*480*1565	1405*590*1626
		kg	75	130	145	157	230
Rough loading	20GP/40GP/40HQ	set	42/92/92	26/54/54	26/54/54	19/41/41	12/27/27
Notes: 1.The values of heating(cooling) capacity/power input/COP(EER) are based on measurement of EN14511 standard.Usage environment, such as operation of the heat pump, room temperature and controller adjustments, may cause disparities between practically determined and these values; 2.Sound pressure level measured at distance of 1m from the device; 3.If local ambient temperature will be below 0°C in winter, please use an approved antifreeze solution; Blueway reserves the rights to modify the above specifications without notice for product improvement. Please contact us for updated information.

MANUFACTURING & SHIPMENT
ADVANTAGES & MARKET OVERVIEW
1.Blueway has around 30 years of rich HVAC manufacturing experience.
2.Over 1000 original R&D products, Blueway is qualified to be OEM/OBM/ODM.
3.Over 10000 engineering solutions with great success provided by Blueway.
4.Online technical service is available twenty-four hours a day without break.
5.Blueway intelligent control system with precise timing, temperature control & remote monitoring function.
With advanced technology and R&D capacity, Blueway has obtained over more than 20 patents and become one of the leading HVAC manufacturers in China. Meanwhile, 70% of Blueway products have been exported to oversea markets, including Australia, Europe, North America, Middle East, South Africa, South America and obtained worldwide recognition. Additionally, it has over 20 representative offices located in different cities of China, and also has its authorized distributors in Europe, Middle East, North America and South America.
So far, Blueway has already provided over 10000 engineering solutions with great success. What's more, Blueway is also the recommended brand by Hilton Hotel in Chinese market. Blueway will continue its endeavor and commitment to serve its worldwide partners by providing solutions and innovative products of high efficiency.
FAQ
Q: Which one is the hot selling model?
A: EDHP-16S is the hot sale model in European market, it can reach to 18kW heating capacity.
Q: What's the selling point of this product series?A: This product series adopt Mitsubishi or Panasonic inverter rotary compressor, DC fan motor, DC watet pump for 3-8HP models, and can easily control the unit via mobile app after WIFI connection. And some models have already gotten ErP A++ labels from TUV certificate company.
Q: How about the refrigerant type?A: For monoblock type, R32/R410a are optional. For split type, R32 & R410a are optional for EDHP-09 (3HP). But for EDHP-12/14/16/24/30 (4-10HP) only have R410a.
Q: How about the compressor?A: Generally, we adopt Mitsubish or Panasonic inverter rotary compressor.
Q: What's the MOQ?A: Generally, one unit of sample order is acceptable, but quotation will be a little higher than container order.
Q: How long is the warranty time?A: Generally, one year for the whole unit, three years for the compressor.
Q: How about the after-sales service?A: Generally, we only provide online technical support. So far, we have authorized distributors & repair centers in Europe, Middle East, North America & South America for the oversea markets.

---
