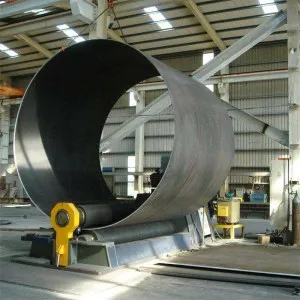

4 Rolls Plate Auto Iron CNC Rolled Steel Machine Automatic Electric Rolling Machines

Product Description

Product Details Technical Parameter

Model	Max Bending Thickness (mm)	Pre-bending Thickness (mm)	Roller Working Length (mm)	Plate Yeild Limit (Mpa)	Top Roller Diameter (mm)	Bottom Roller Diameter (mm)	Side Roller Diameter (mm)	Main Power (Kw)	Length*Width*Height(L*W*H)(mm)	Weight (Kg)
W12-4x2000	4	3.5	2050	245	160	140	120	3	4600*1100*1100	4300
W12-4x2500	4	3.5	2550	245	190	170	150	4	5150*1300*1400	5000
W12-4x3000	4	3.5	3100	245	210	190	170	5.5	5650*1420*1400	6300
W12-6x2000	6	5	2050	245	190	170	150	4	4650*1300*1400	4800
W12-6x2500	6	5	2550	245	210	190	170	5.5	5150*1420*1400	5800
W12-6x3000	6	5	3100	245	230	210	190	7.5	5860*1430*1400	7000
W12-8x2000	8	6.5	2050	245	210	190	170	5.5	4650*1420*1400	5600
W12-8x2500	8	6.5	2550	245	230	210	190	7.5	5250*1500*1400	6300
W12-8x3000	8	6.5	3100	245	270	250	210	11	5750*2130*2000	9500
W12-10x2000	10	8	2050	245	230	210	190	7.5	4700*1420*1400	5800
W12-10x2500	10	8	2550	245	270	250	210	11	5270*1420*1400	6500
W12-10x3000	10	8	3100	245	300	270	220	11	5700*1500*1500	8800
W12-12x2000	12	10	2050	245	270	250	210	11	4770*1520*2130	6500
W12-12x2500	12	10	2550	245	300	270	220	11	5200*1500*1500	8200
W12-12x3000	12	10	3100	245	330	300	240	11	5770*1900*1880	13500
W12-16x2000	16	13	2050	245	300	270	220	11	4700*1500*1500	7500
W12-16x2500	16	13	2550	245	330	300	240	11	5550*1840*1820	12000
W12-16x3000	16	13	3100	245	360	330	250	15	6300*2000*2050	17000
W12-20x2000	20	16	2050	245	330	300	240	11	4700*1900*2000	12000
W12-20x2500	20	16	2550	245	360	330	250	15	5800*2000*2050	15000
W12-20x3000	20	16	3100	245	390	360	300	18.5	6500*2250*2550	23000
W12-25x2000	25	20	2050	245	360	330	250	15	5300*2000*2050	14000
W12-25x2500	25	20	2550	245	390	360	300	18.5	6250*2160*2350	22500
W12-25x3000	25	20	3100	245	430	390	330	22	7000*2300*2500	30000
W12-30x2000	30	25	2050	245	390	360	300	18.5	5000*2160*2350	21000
W12-30x2500	30	25	2550	245	430	390	330	22	6500*2300*2500	27000
W12-30x3000	30	25	3100	245	460	420	360	30	7300*2600*2700	33000
W12-35x2000	35	28	2050	245	430	390	330	22	6000*2300*2500	25000
W12-35x2500	35	28	2550	245	460	420	360	30	6800*2600*2700	31000
W12-35x3000	35	28	3100	245	510	460	390	37	7600*2800*2900	38500
W12-40x2000	40	32	2050	245	460	420	360	30	6300*2600*2700	29000
W12-40x2500	40	32	2550	245	510	460	390	37	7100*2800*2900	35000
W12-40x3000	40	32	3100	245	550	510	420	45	8000*3100*3200	45000
W12-45x2000	45	36	2050	245	510	460	390	37	6600*2800*2900	33500
W12-45x2500	45	36	2550	245	550	510	420	45	7500*3100*3200	42000
W12-50x2000	50	40	2050	245	550	510	420	45	7000*3100*3200	38000
W12-50x3000	50	40	3100	245	610	560	480	55	8800*3600*3800	65000
W12-60x3000	60	48	3100	245	670	620	520	75	10000*4300*4600	90000
