Fabricado En China Tk 56/500-56/1000 CNC Lathe Tk Series Smart

Product Description

Product Description

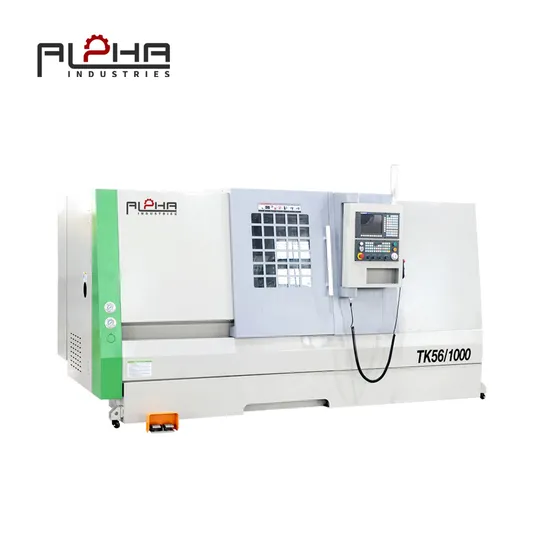

Precision Lathe Machine Fabricado En China Tk 56/500-56/1000 CNC Lathe
Product Parameters

Model		Unit	TK56/500	TK56/1000
Maximum turning diameter on the bed		mm	560	560
Maximum cutting length		mm	500	1000
Standard cutting diameter		mm	/	280 8-station
Maximum cutting diameter		mm	Disk class Φ400 axis class Φ350	350 8-station
Standard cutting diameter		mm	/	280 12-station
Maximum cutting diameter		mm	/	280 12-station
Maximum turning diameter on a skateboard		mm	350	350
Spindle end type and code			A2-6	A2-6/A2-8
Spindle front taper hole			/	65/80
Main shaft hole diameter		mm	Φ65	50/66
Maximum pass bar diameter		mm	Φ50	/
Single spindle headstock	Spindle speed range /Maximum output torque of spindle	r/min/ Nm	50-4000	50-4000 /150
	Spindle speed series		/	Stepless speed change
Main motor Output power		kW	15/11	15/11
Standard chuck	Chuck diameter	inch	8	8
X-axis fast moving speed		m/min	30	30
Z-axis fast moving speed		m/min	30	30
X-axis travel		mm	210	210
Z-axis travel		mm	560	1050
Standard tool holder form			Horizontal 8 station	Horizontal 8 station
Tailstock travel		mm	450	900
Tailstock spindle taper		MT	5#	5#
Tool size	Cylindrical cutter	mm	25×25	25×25
	Boring bar diameter	mm	Φ40/Φ32/Φ25/Φ20	Φ40/Φ32/Φ25/Φ20
Whether the cutter can select the tool nearby			YES	YES
Machine weight	All up weight	kg	4000	4500
Maximum bearing capacity	Disk component	kg	200(Including chuck and other machine accessories)
	Shaft member	kg	500(Including chuck and other machine accessories)
Height of center	Above ground	mm	/	1050
Machine tool profile	L×W×H	mm	2750×2000×2200	3570×2000×1900

Standard Accessories

Hydraulic 3-jaw Chuck	Hydraulic Tailstock
8-station Servo Turret	3 Color Indicator Lamp
Automatic Lubrication System	Work Lamp
Automatic Coolant System	Fully Enclosed Guard
Hydraulic System	Heat Exchanger Of Electric Cabinet

Optional Accessories

12-Station Power Turret	Bar Feeder
Different Chucks And Collets	Air Conditioner of Electric Cabinet
Automatic Tailstock	Different Steady Rest
Chip Conveyor	C Axis
Tool Setter	Y Axis on Turret for Up /Down Movement

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
