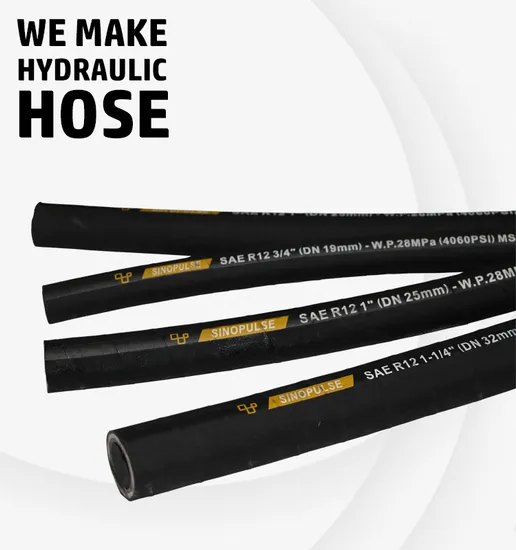

SAE 100r12 1" Hydraulic Flexible Hose with Four Steel Wire Spiral 4060psi

Product Description

Product Description
1.Product Name: High pressure hydraulic hose SAE100 R12 with 4 steel wire spiral 4060psi 2.Certification: ISO9001:2015; MSHA. 3.Application: Transportation hydraulic oil for construction machine, excavators, agriculture machine, tractors, Industrial equipment, injection molding machine and mining equipment

Part No.	I.D.		O.D.	W.P		B.P		B.R	W.T
Dash	Inch	mm	mm	MPa	PSI	MPa	PSI	mm	kg/m
R12-06	3/8"	9.5	20.2	28.0	4060	112	16240	125	0.707
R12-08	1/2"	12.7	23.5	28.0	4060	112	16240	180	0.871
R12-10	5/8"	15.9	27.3	28.0	4060	112	16240	200	1.107
R12-12	3/4"	19.1	31.0	28.0	4060	112	16240	240	1.339
R12-16	1"	25.4	38.0	28.0	4060	112	16240	300	1.984
R12-20	1.1/4"	31.8	47.0	21.0	3045	84	12180	420	2.532
R12-24	1.1/2"	38.1	54.0	17.5	2540	70	10150	500	3.040
R12-32	2"	50.8	67.5	17.5	2540	70	10150	640	4.586

Detailed Photos
Company Profile
WORK FLOW

Packaging & Shipping
Packing Details :
1. Colorful nylon tape wrapped coils
2. Transparent PVC sea worthy tape wrapped coils
3. Plastic hose reels
4. Wooden hose reels
5. Pallets with hose coils
6. Wooden case with hose coils
Delivery Details : 1. Less than 1000 Meters will delivery within 7days;2. Less than 5000 Meters will delivery within 10 days. 3. Less than 10000 Meters will delivery within 15 days. 4. One full container will be delivery within 30 days.
FAQ
Q: Are you trading company or manufacturer ?A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Certifications

---
