Yuntian High Quality Double Girder Overhead Crane

Product Details

Product Description

Product Description
Yuntian High Quality Double Girder Overhead Crane
Product Description

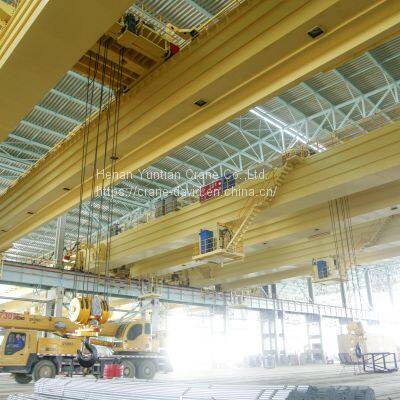

QD double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.
Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.
There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.
Contact us for more information !
Main Features:
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
Detailed Images:
Please click here for details communication
Sketch Drawing:
Please contact me for customized parameters !
Technical Parameters:

QD double beam overhead crane
Lifting Capacity T				5	10	16/3.2	20/5	25/5	32/5	50/10	400/80
Span M				10.5-31.5							28
Lifting height M	Main Hook			16	16	16	12	12/11.0	16	12	22
	Aux Hook					18	11	14/13	18	16	24
Speed M/min	hoist	Main hook	A5	12.5	8.5	7.9	7.2	7.3	7.8	5.9	2.92
			A6	15.5	13.3	13	9.7	9.8	9.5	7.8
		Aux hook				14.5	12.7	12.7	19.5	13.2	9.24
	Trolley travelling			37.2	43.8	44.6	44.6	37	42.4	38.5	37.2
	Bridge travelling		A5	89.8 /92.3	89.8-91.9	84.7-87.6	84.7/ 87.6	85.5/88	74.2-87.6	74.6	25.9
			A6	116.2/ 117.4	112.5-116.8	112.5	112.5/ 101.4	112/ 101.4	86.8-101.4	87.3
Weight Kg	Trolley		A5	2126	3424	6227	6856	7185	10877	15425	142.3
			A6	2224	3562	6427	7180	7856	11652	15765
	Total Weight		A5	12715-31405	14270-34405	19128-39428	19947-41497	20795-42796	26901-52748	35317-64880	359000
			A6	12991-31596	14719-34699	20045-41315	20984-44225	22632-16324	28061-55272	36075-67242
Max Wheel Load KN			A5	74-125	102-160	141-205	163-231	185-255	237-327	333-450	7500
			A6	75-126	104-162	145-211	167-239	189-263	242-335	336-457
Rail recommended		Trolley		15kg/m					43kg/m
		Bridge		43kg/m					QU70	QU80	QU120
Power Source				According to your demand
