2.2kw High Shear Mixer for 100L Cream Water Gel Homogenizing Emulsion Mixer

Product Description

2.2kw high shear mixer for 100L cream water gel homogenizing | emulsion mixer
High shear mixer without lift stand for 380V 50Hz 3P AC voltage
For the manufacturing of pharmacy, daily chemicals and food & beverage industry, especially cosmetic industry such as lipstick,facial cream, lotions, washing detergent, hand sanitizer and ointment.
To dispersing, shearing and cutting force in working load to get uniformly homogenizing and thoroughly emulsifying.
Installed on existing stainless-steel tank, vessel, IBC tote, plastic drum and barrels.
Main parts included in the high shear mixer / homogenizer WRL-120 TRS-4 high shear homogenizer mixer
1. the fan for variable speed motor
2. the driving motor for satisfactory operation under 380V 50hz 3phase AC
3. the mounting flange for easy assembly on existing tanks
4. the support shafts for working head and driving motor
5. the rotation shaft to hold the propeller and rotor
6. a down thrust propeller on the main rotation shaft
7. the rotor stator assembly (working head)
Technical specification and price WRL-120 TRS-4 high shear homogenizer mixer

Model	TRS-2.2V 2.2kw high shear mixer with variable speed motor	WRL-120 TRS-4 high shear homogenizer mixer
Voltage	380V 50Hz 3Phase AC
Mounting	Top mounting
Working mode	Batch type
Wet material	Stainless steel 304
Motor poles	2
Speed	Synchronous RPM 3000
Protection	IP55 weatherproof enclosures
Motor power	2.2kw
Motor mounting type	B5(flange mount)
Suitable for	50~100Liter per cycle
Working head design	Type D (claw working head)
L	650
M	165
P	200
D	88
D1	140
Over length	1050
Unit price EXW Wenzhou
Freight by courier	WRL-120 TRS-4 high shear homogenizer mixer
In total

WRL-120 TRS-4 high shear homogenizer mixer
l All dimensions except those clearly marked are measured in millimeters
l Suitable for both low and high viscosity fluid like water, milk, oil, gel, cream, water power mixture.
l For alcohol based flammable mixture, please choose explosion-proof motor only
l Control box and frequency converter included in the price.
Working head options
Ranking machinery offers High Shear Rotor-Stator mixers with a selection of stator heads to fine tune the mixer for your process and to handle a wide variety of working load.
A. Mesh / fine screen stator for fine emulsions.
B. Long hole (slotted) for fine dispersions and size reduction of solids
C. Round hole stator for dispersing application
D. Claw type stator offers more shearing force, for high viscosity and heavy duty working condition.

Packing and product image

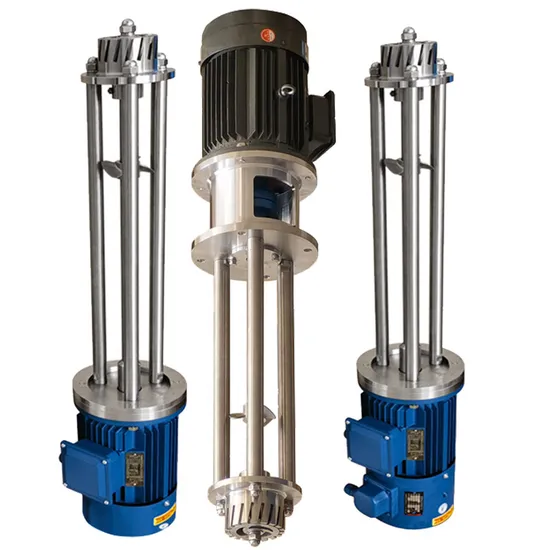

2.2kw high shear mixer and speed contoller picture.

Tips for high shear mixer and speed controller buyer
this page is to show you our 2.2kw / 3hp high speed shearing mixer / homogenier / emuslfiying mixer / emulsion dispersing mixer and some customzied options available. the prices listed on this page is only for the 2.2kw standard high shear mixer / high speed mixer with a 0~3000rpm electric engine. buyer will need to use a speed controller (frequency converter / VFD controller) to regulate the shearing mixer speed. under reqeust, we can also offer the speed controller.
When placing an order for the 2.2kw high shear mixer in this page, a 2.2kw high shear mixer with variable speed mixing motor will be send out to buyer. no speed controller / no VFD controller / No frequency converter will be offered together with this 2.2kw high shear mixer / homogenizer / emulsifying mixer.
The default emulsifier / high shear mixer does not include frequency converter.
frequency converter / stainless steel speed controller is available under requst. Offer 2.2kw high shear mixer for 100L cream water gel homogenizing | emulsion mixer

---
