High Capacity PVC Resin Vertical Hot Drying Mixer

Product Description

Product Description

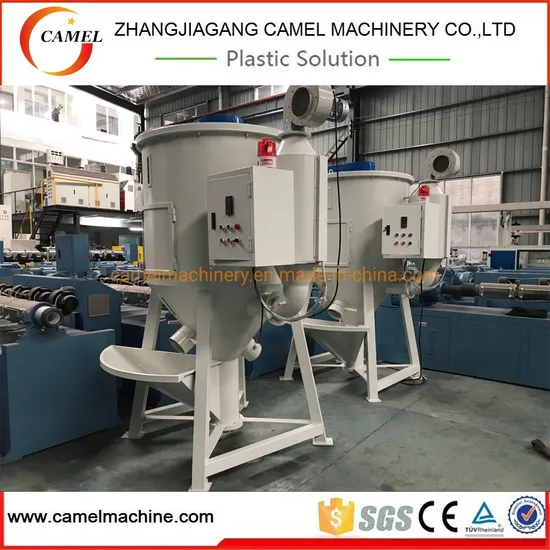

Vertical Plastic Mixer
Vertical dryer mixer:
It is mainly used for the plastic raw material's drying. It can be used for the ABS, PVC,HDPE,PPR grain material drying.
The mixer can realise the plastic color mixing and hot air drying, the whole mixing and drying processing controlled by the PID temperature controller and time relay.
The most economical mixing solution can be provided. Two or more materials will be put into hoppers of the mixer through the artificial measurement. The raw materials will be brought into the mixing chamber by the revolving worm in the middle of the mixer. The raw materials will enter into the inside through middle belt of the mixer and after that the raw materials will be brought to the top through rotation of the screw. After that, they will be dropped in the form of an umbrella. This kind of operations will be done time and again. Even mixture of raw materials with mo del under 3000L can be completed within 20 minutes.
Characteristic:
Economical solution for mixing materials;
Automatic timing function. The machine will stop automatically after completion of the mixing operations;
304 stainless steels, which are durable;
Product Advantages:
1. saving energy by 27%-65%.
2. Connected with feeding hole of the extruder,avoiding twice wet of granule material.
3. High drying ability,increasing ejection speed rate.
4. Improving the quality of finished products.
Detailed Photos
Product Parameters

NO.	Model	Volume	Capacity(kg/hour)	Heating Power
1	HG-U8	8L	5	1.2kw
2	HG-U16	10L	10	1.4kw
3	HG-U20	12L	12	1.6kw
4	HG-U25	15L	15	1.8kw
5	HG-U40	25L	25	2.6kw
6	HG-U80	60L	60	3.9kw
7	HG-U125	75L	75	4.8kw
8	HG-U160	100L	100	5.4kw
9	HG-U 250	150L	150	9kw
10	HG-U 315	200L	200	12kw
11	HG-U 400	250L	250	15kw
12	HG-U 500	300L	300	18kw
13	HG-U 800	500L	500	24kw
14	HG-U 1250	800L	800	36kw
15	HG-U 1500	1000L	1000	48kw

We can custom make different size if customer has special requirement.Company Profile
Zhangjiagang Camel Machinery Co., Ltd is one of professional manufacturers for plastic extrusion and recycling equipment in China. CAMELMACHINERY aim is to be a top plastic equipment supplier in the world, base on the spirit of this principle, we are not only made our best to meet the market demand but also enhance innovative ability.
CAMELMACHINERY offers following major product lines :
1.PVC/PE/PPR/PP pipe extrusion line
2. PVC garden hose/spiral hose/steel wire reinforced hose extrusion line
3. WPC extrusion line
4.PET bottle recycling line
5.PE/PP film recycling line
6.UPVC PVC ceiling wall panel extrusion line,
7.WPC foam board production line,
8.Single shaft shredder,
9.Double shaft shredder,
10.Plastic crusher and so on...
Our Customers
Certifications
Packaging & Shipping
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or other.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6: 380V 50hz 3 phase or any other voltage according to client's requirement.

---
