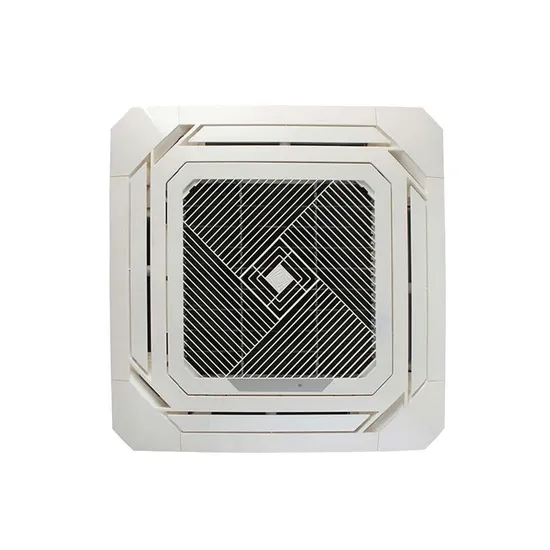

Central Air Conditioner with Solar Energy Low Noise 24000BTU Cassette

Product Description

Solar Air Conditioner Description What Is Solar Air Conditioner
Recreate Hybrid Solar air conditioner is engineered from the ground up for use with solar.All electrical components are DC powered including compressor,high-efficiency DC fan motors,DC valves&solenoids,etc.
The Recreate's system uses a VRF(Variable Refrigerant Flow)controller and frequency driver in conjunction with multiple sensors and an algorithmic control circuit to raise and lower the unit's capacity in real-time based on conditions as they change.Recreate Hybrid Solar air conditioner are more powerful and use less energy than a fixed speed air conditioner.
Recreate is the inventor of world's first true Hybrid Solar air conditioner.Using Recreate's Solar direct drive technology(SDDA) the Recreate Solar Hybrid unit can use Solar DC generated power or mains AC generated power,or a combination of both as required.This means that the Recreate Hybrid requires NO batteries,NO inverter,NO controller and need only a few PV panels to deliver a huge saving.Under optimum conditions,this can save up to 97% of your mains power usage.
The SDDA will use as much solar energy as is available and this solar energy directly replaces the equivalent amount of AC power from the mains provider.Under enough solar power conditions,the Recreate Hybrid can normal operation without AC generated power.



Benefits of Recreate ACDC Hybrid
1. Connects Directly to the Solar Panel Runs on up to 100% solar power directly in daytime that would save you up to 97% of your power bill.
2. Easy Solar Connections Connection from the solar panels to the Recreate Solar Hybrid outdoor is very simple with a terminal block mounted in the outdoor unit for the positive and negative cables straight from the solar panels.
3. Super applicability Wide operating temperature range-10ºC to +52ºC,Meet T3 work environment Wide operating AC voltage rangeAC 160V-250V,meet the remote network voltage instability area.
4. Super energy-saving and Super Cooling performance Super Cooling performance is ensured by big compressor together with the greatest heat exchange system.SEER up to 36 with solar,22 without solar.
Common Application
home / office / school / remote telecom station / desert location / island location / bus station...
A/C Unit Description

Model No.			RC-ADC12GW-XA	RC-ADC18GW-XA	RC-ADC24GW-XA
Power Supply	Solar Power	V	DC90-380V MAX.15A
	AC Power Connected	V	200-230V(50/60Hz)
Cooling	Capacity	Btu/h	12000	18000	24000
	Inverter Capacity Range	Btu/h	3099-12987	3482-19389	4294-25280
	Power Input	kW	0.98	1.51	1.87
	Rated Current(AC)	A	4.46	6.2	8
	SEER		22	20	20
	EER		12.6	12.1	12.1
Heating	Capacity		12,000	17,200	23,800
	Inverter Capacity Range	Btu/h	3753~13306	4435~19789	5100~23542
	Power Input	kW	1.12	1.29	1.82
	Rated Current	A	5.93	6.08	8.08
	HSPF		11	10	11
	COP		12.1	11.6	12.7
	Dehumidification	pt/h	1.3L/h	1.9L/h	2.3L/h
Indoor Air Flow - (Hifan)		cfm	660	1080	1210
Indoor Noise dB(A) (Hifan)		dB(A)	40	45	47
Max Refrigeration Pipe Length		ft/m	15	15	15
Max Refrigeration Pipe Rise/Fall		ft/m	5	5	5
Max Elevation Difference			15	15	15
Design Pressure		psig	550 / 340	550 / 340	550 / 340
Connection		Type	flare	flare	flare
Connection Wiring		AWG	4*18AWG	4*18AWG	4*18AWG
Operation temperature	Indoor (Cooling/Heating)	ºF	60.8 - 89.6/ 60.8 - 89.6	60.8 - 89.6/ 60.8 - 89.6	60.8 - 89.6/ 60.8 - 89.6
	Outdoor (Cooling/Herating)	ºF	50- 125.6/5-104	50- 125.6/5-104	50- 125.6/5-104
Indoor Unit	Dimension(W*D*H)	mm	895×300×203	1000×310×240	1130×320×245
	Packing(W*D*H)	mm	1080×385×327	1080×385×327	1195*310*390
	Net/Gross Weight	kg	9/11.1	12.5/14.5	15.5/17.5
Outdoor Unit	Dimension(W*D*H)	mm	795×290×555	795×290×555	860×304×733
	Packing(W*D*H)	mm	910×400×630	910×400×630	1005×450×820
	Net/Gross Weight	kg	31/35	35/39	51/55
Approvals			CB/GCC/ Performance Certified
Container Load 20'/40'/40'HQ			84/177/206	78/171/179	54/115/128

Solar Part Description

Certificate
Our Factory

---
