LV Mulit Core Copper Conductor XLPE Insulation PVC Sheath Swa Power Cable

Product Description

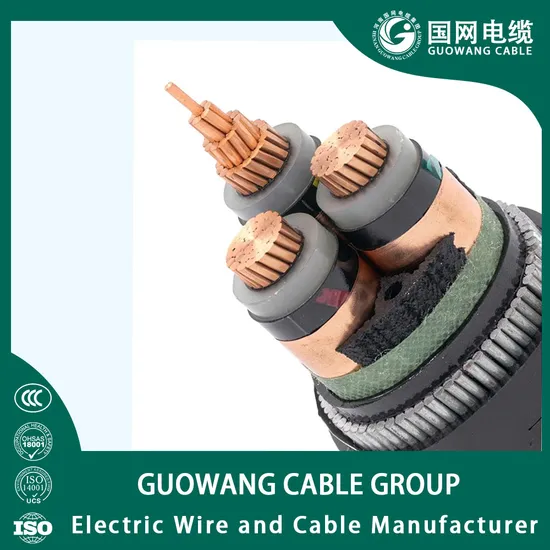

Detailed Photos
Product Description System
This product is suitable for transmitting electric energy in power lines with AC 50Hz and rated voltage 0.6/1kV (system maximum voltage 1.2kV).
Occasion
Fixed laying in metallurgy, electric power, construction and other industries indoors, cable trenches, pipelines, direct burial and other places that do not need to withstand mechanical external force.
Product Characteristics
The raw materials for product production are widely sourced and cheap, and are easy to process and manufacture.
The product is insulated with cross-linked polyethylene. Compared with PVC insulated cables, it has better insulation performance and canwithstand extremely high working temperatures, up to 90 degrees.
The product is armored with steel tape and can withstand greater mechanical pressure.
Using features
Rated voltage
The rated voltage is 0.6/1kV, and the maximum voltage of the AC system should not exceed 1.2kV.
Operating temperature
The maximum allowable long-term operating temperature of the cable conductor is 90°C; In the case of short circuit, the maximum temperature of the cable conductor shall not exceed 250 ° C and the duration shall not exceed 5s.
ambient temperature
The minimum ambient temperature for cable operation is -15ºC.
Laying temperature
When installing and laying, the temperature should not be lower than 0ºC.
bending radius
The bending radius of single-core cables should be no less than 20 times the outer diameter of the cable, and the bending radius of multi-core cables should be no less than 15 times the outer diameter of the cable.
Product Identification
Core of cable
1.Color identification When multi-core cables are marked with different colors, they must comply with the following regulations: 2-core cable: red, blue; 3-core cable: yellow, green, red; 4-core cable: yellow, green, red, blue; 5-core cable Cable: yellow, green, red, blue, black (or determined by negotiation between the supplier and the buyer). The colors red, yellow and green are used for the main wire core. Blue is used for the neutral core. In order to avoid confusion with other colors, it is recommended to use light blue.
2. Digital identification When multi-core cables use digital identification, they must comply with the following regulations: 2-core cable: 0, 1; 3-core cable: 1, 2, 3; 4-core cable: 0, 1, 2, 3; 5-core cable :0,1,2,3,4. The numbers 1, 2, and 3 are used for the main core, and 0 is used for the neutral core. In a 5-core cable, the number "4" refers to the specific purpose conductor (including the grounding conductor). When the insulated cores are marked with numbers, the insulation should be of the same color and arranged according to the numbers. Numbers should be printed on the surface of the insulated core with Arabic numerals. The color of the numbers should be the same and have obvious contrast with the insulation color and the writing should be clear; the number signs should be repeated at equal intervals along the insulated core, and two adjacent sets of number signs should be Invert each other. When the logo consists of a single number, a dash should be placed below the number. If the The logo consists of two numbers, it should be arranged up and down and a dash should be placed below the subsequent numbers. The spacing between two adjacent sets of digital logos is d. Should be no larger than 50mm.
Sheath
The outer sheath of the cable is usually black, but it can also be in colors other than black according to the manufacturer or buyer's agreement to adapt to its use environment. The cable should have continuous identification of the manufacturer's name, product model and rated voltage . The manufacturer's name identification can be Duplicate identification of manufacturer or trademark. The printed logo should be scratch-resistant and not fall off, and the printed content on the surface should be clearly legible. Note: The logo on the surface of the sheath can also add other logo contents according to the habits of the user or manufacturer.
Delivery and Tolerance
Delivery Length
Cables weighing less than 80kg are allowed to be delivered in coils, and the delivery length of short-segment cables should not exceed 5% of the total delivery length, or cables of any length can be delivered according to mutual agreement.
Delivery and Tolerance
Delivery length measurement error is ±0.5%
Order Instructions
When ordering, the cable model, specification, length, delivery date, packing method and other necessary information should be correctly marked. For example:
Model: YJV
Specification: 3×16
Length: 1000m
Packing method: iron tray packing
Delivery date: last day valid
Mode of transport: train transport, car transport, ship transport or air transport
Place of delivery: buyer's warehouse or site or buyer's own delivery
Note: The mode of transportation and place of delivery shall be specified by the buyer.
Installation Notice
During installation, the ambient temperature should not be lower than 0 ° C. If the ambient temperature measured by the thermometer is lower than 0 ° C, preheat the cable before preparing for installation. The bending radius during cable laying should be strictly controlled to avoid mechanical damage inside the cable.
Product Parameters

Rated voltage	No,of CORES	core ×cross secticn (MM)	CONDUCTOR	CORE DIANETER (MM2)	INSULATION THCKNESS (MM)	BELT (MM)	INNER SHEATH THCKNESS (MM)	ARMOR (MM)	OUTER SHEATH THCKNESS (MM)	Reference outer diameter (MM)	Reference weight (kg/km)	DC RESISTANCE (Ω/KM)
0.6/1KV	2	2×1.5	1/1.38	1.38	0.7	20×0.20	1.0	34×0.8	1.8	13.9	333.7	12.1
	2	2×2.5	1/1.78	1.78	0.7	20×0.20	1.0	37×0.8	1.8	14.7	379.9	7.41
	2	2×4	1/2.25	2.25	0.7	20×0.20	1.0	41×0.8	1.8	15.7	443.6	4.61
	2	2×6	1/2.76	2.76	0.7	20×0.20	1.0	44×0.8	1.8	16.7	513	3.08
	2	2×10	7/1.35	4.05	0.7	20×0.20	1.0	35×1.25	1.8	20.2	824.3	1.83
	2	2×16	7/1.66	4.98	0.7	20×0.20	1.0	40×1.25	1.8	22.2	1014.2	1.15
	2	2×25	7/2.14	6.42	0.9	25×0.20	1.0	39×1.6	1.8	26.5	1541.6	0.727
	2	2×35	7/2.52	7.56	0.9	25×0.20	1.0	43×1.6	1.8	28.9	1848.9	0.524
	2	2×50	10/2.52	5.7×13.5	1.0	40×0.20	1.0	36×1.6	1.8	24.8	1806.3	0.387
	2	2×70	14/2.52	7.0×15.6	1.1	45×0.20	1.0	41×1.6	2.0	28.2	2320.1	0.268
	2	2×95	19/2.52	8.3×18.0	1.1	55×0.20	1.2	38×2.0	2.1	32.2	3179.2	0.193
	2	2×120	24/2.52	8.9×20.8	1.2	60×0.20	1.2	40×2.0	2.2	34	3731	0.153
	2	2×150	30/2.52	10.0×23.1	1.4	60×0.20	1.2	45×2.0	2.3	37.2	4474.6	0.124
	2	2×185	37/2.52	11.1×25.7	1.6	60×0.20	1.4	40×2.5	2.5	42	5714.8	0.0991
	2	2×240	48/2.52	12.5×29.1	1.7	60×0.20	1.4	44×2.5	2.7	45.6	6976.5	0.0754
	2	2×300	61/2.52	15.0×32.2	1.8	60×0.20	1.6	51×2.5	2.8	51.6	8607.6	0.0601
	3	3×1.5	1/1.38	1.38	0.7	20×0.20	1.0	36×0.8	1.8	14.4	366.6	12.1
	3	3×2.5	1/1.78	1.78	0.7	20×0.20	1.0	39×0.8	1.8	15.2	421.8	7.41
	3	3×4	1/2.25	2.25	0.7	20×0.20	1.0	43×0.8	1.8	16.3	501.1	4.61
	3	3×6	1/2.76	2.76	0.7	20×0.20	1.0	47×0.8	1.8	17.4	594.8	3.08
	3	3×10	7/1.35	4.05	0.7	20×0.20	1.0	38×1.25	1.8	21.1	965	1.83
	3	3×16	7/1.66	4.98	0.7	20×0.20	1.0	43×1.25	1.8	23.3	1205.3	1.15
	3	3×25	7/2.14	6.42	0.9	25×0.20	1.0	41×1.6	1.8	27.8	1832.1	0.727
	3	3×35	7/2.52	7.56	0.9	25×0.20	1.0	46×1.6	1.8	30.4	2247.3	0.524
	3	3×50	10/2.52	7.0×11.5	1.0	50×0.20	1.0	42×1.6	1.9	28.6	2431.4	0.387
	3	3×70	14/2.52	8.0×13.7	1.1	55×0.20	1.2	39×2.0	2.0	32.5	3375.3	0.268
	3	3×95	19/2.52	9.5×15.8	1.1	60×0.20	1.2	44×2.0	2.2	36.1	4289	0.193
	3	3×120	24/2.52	10.8×18.6	1.2	60×0.20	1.2	48×2.0	2.3	39.5	5151.6	0.153
	3	3×150	30/2.52	12.5×20.5	1.4	60×0.20	1.4	45×2.5	2.5	45.7	6717.4	0.124
	3	3×185	37/2.52	14.3×23.3	1.6	60×0.20	1.4	50×2.5	2.6	50.5	8006.1	0.0991
	3	3×240	48/2.52	16.3×26.2	1.7	60×0.20	1.6	56×2.5	2.8	56	9934.9	0.0754
	3	3×300	61/2.52	18.0×29.8	1.8	60×0.20	1.6	61×2.5	3.0	60.4	12037.8	0.0601
	4	4×1.5	1/1.38	1.38	0.7	20×0.20	1.0	38×0.8	1.8	15.1	404	12.1
	4	4×2.5	1/1.78	1.78	0.7	20×0.20	1.0	42×0.8	1.8	16.1	477.1	7.41
	4	4×4	1/2.25	2.25	0.7	20×0.20	1.0	47×0.8	1.8	17.3	576.6	4.61
	4	4×6	1/2.76	2.76	0.7	20×0.20	1.0	34×1.25	1.8	19.4	832.1	3.08
	4	4×10	7/1.35	4.05	0.7	20×0.20	1.0	41×1.25	1.8	22.6	1123.3	1.83
	4	4×16	7/1.66	4.98	0.7	25×0.20	1.0	37×1.6	1.8	25.7	1570.4	1.15
	4	4×25	7/2.14	6.42	0.9	25×0.20	1.0	45×1.6	1.8	30	2188.7	0.727
	4	4×35	7/2.52	7.56	0.9	25×0.20	1.0	50×1.6	1.9	33.1	2718.6	0.524
	4	4×50	10/2.52	7.5×10.5	1.0	55×0.20	1.0	46×1.6	2.0	30.7	3001.8	0.387
	4	4×70	14/2.52	9.1×12.5	1.1	60×0.20	1.2	44×2.0	2.2	36.3	4236.4	0.268
	4	4×95	19/2.52	11.0×13.3	1.1	60×0.20	1.2	50×2.0	2.3	40.6	5412.5	0.193
	4	4×120	24/2.52	12.0×17.0	1.2	60×0.20	1.4	44×2.5	2.5	45.1	6952.2	0.153
	4	4×150	30/2.52	13.9×19.7	1.4	60×0.20	1.4	50×2.5	2.6	50.3	8407.1	0.124
	4	4×185	37/2.52	15.2×21.2	1.6	60×0.20	1.4	55×2.5	2.8	54.5	10035.1	0.0991
	4	4×240	48/2.52	17.3×24.3	1.7	60×0.20	1.6	61×2.5	3.0	60.3	12480.6	0.0754
	4	4×300	61/2.52	19.5×27.9	1.8	60×0.20	1.6	67×2.5	3.2	66	15248.1	0.0601
	5	5×1.5	1/1.38	1.38	0.7	20×0.20	1.0	41×0.8	1.8	15.9	448.3	12.1
	5	5×2.5	1/1.78	1.78	0.7	20×0.20	1.0	45×0.8	1.8	17	533.2	7.41
	5	5×4	1/2.25	2.25	0.7	20×0.20	1.0	33×1.25	1.8	19.3	786.5	4.61
	5	5×6	1/2.76	2.76	0.7	20×0.20	1.0	36×1.25	1.8	20.6	936	3.08
	5	5×10	7/1.35	4.05	0.7	25×0.20	1.0	45×1.25	1.8	24.1	1294	1.83
	5	5×16	7/1.66	4.98	0.7	25×0.20	1.0	40×1.6	1.8	27.5	1806.5	1.15
	5	5×25	7/2.14	6.42	0.9	25×0.20	1.0	50×1.6	1.8	32.4	2574.3	0.727
	5	5×35	7/2.52	7.56	0.9	30×0.20	1.0	55×1.6	1.9	35.8	3206	0.524
	5	5×50	10/2.52	4.8×14.2	1.0	60×0.20	1.2	41×2.0	2.1	34.2	3844.3	0.387
				8.4	1.0
	5	5×70	14/2.52	5.7×16.8	1.1	60×0.20	1.2	47×2.0	2.3	38.5	5006.2	0.268
				10	1.1
	5	5×95	19/2.52	6.7×19.6	1.1	60×0.20	1.4	43×2.5	2.4	43.7	6825.4	0.193
				11.6	1.1
	5	5×120	24/2.52	7.9×21.9	1.2	60×0.20	1.4	48×2.5	2.6	48.4	8297.4	0.153
				13	1.2
5	5×150	30/2.52	8.5×24.6	1.4	60×0.20	1.4	52×2.5	2.8	52.6	9948.5	0.124
			14.6	1.4
5	5×185	37/2.52	9.4×27.2	1.6	60×0.20	1.6	58×2.5	3.0	57.8	12008.4	0.0991
			16.2	1.6
5	5×240	48/2.52	10.8×31.0	1.7	60×0.20	1.6	65×2.5	3.2	63.8	14965.5	0.0754
			18.5	1.7
5	5×300	61/2.52	12.2×34.4	1.8	60×0.20	1.8	57×3.15	3.4	71.3	19200.7	0.0601
			20.6	1.8
4	3×4+1×2.5	1/2.25	2.25	0.7	20×0.20	1.0	45×0.8	1.8	17	526.1	4.61
		1/1.78	1.78	0.7
5	3×4+2×2.5	1/2.25	2.25	0.7	20×0.20	1.0	32×1.25	1.8	18.7	691.4	4.61
		1/1.78	1.78	0.7
		1/1.78	1.78	0.7
4	3×6+1×4	1/2.76	2.76	0.7	20×0.20	1.0	33×1.25	1.8	19.1	761.6	3.08
		1/2.25	2.25	0.7
5	3×6+2×4	1/2.76	2.76	0.7	20×0.20	1.0	35×1.25	1.8	20.1	807.1	3.08
		1/2.25	2.25	0.7
		1/2.25	2.25	0.7
4	3×10+1×6	7/1.35	4.05	0.7	20×0.20	1.0	39×1.25	1.8	21.9	996.4	1.83
		7/1.04	3.12	0.7
5	3×10+2×6	7/1.35	4.05	0.7	20×0.20	1.0	42×1.25	1.8	23	1056.1	1.83
		7/1.04	3.12	0.7
		7/1.04	3.12	0.7
4	3×16+1×10	7/1.66	4.98	0.7	25×0.20	1.0	45×1.25	1.8	24.4	1255.2	1.15
		7/1.35	4.05	0.7
5	3×16+2×10	7/1.66	4.98	0.7	25×0.20	1.0	38×1.6	1.8	26.4	1472.1	1.15
		7/1.35	4.05	0.7
		7/1.35	4.05	0.7
4	3×25+1×16	7/2.14	6.42	0.9	25×0.20	1.0	43×1.6	1.8	28.9	1896.5	0.727
		7/1.66	4.98	0.7
5	3×25+2×16	7/2.14	6.42	0.9	25×0.20	1.0	46×1.6	1.8	30.4	1990.2	0.727
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×35+1×16	7/2.52	7.56	0.9	25×0.20	1.0	47×1.6	1.8	31.1	2284.6	0.524
		7/1.66	4.98	0.7
5	3×35+2×16	7/2.52	7.56	0.9	25×0.20	1.0	50×1.6	1.8	32.4	2374.1	0.524
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×50+1×25	10/2.52	7.2×10.8	1.0	55×0.20	1.0	47×1.6	1.9	30.9	2787.7	0.387
		7/2.16	6	0.9
5	3×50+2×25	10/2.52	5.0×14.3	1.0	55×0.20	1.0	46×1.6	2.0	30.7	3020.6	0.387
		7/2.16	6	0.9
		7/2.16	6	0.9
4	3×70+1×35	14/2.52	9.0×13.0	1.1	60×0.20	1.2	45×2.0	2.1	37.1	3940.6	0.268
		7/2.52	7	0.9
5	3×70+2×35	14/2.52	6.0×16.8	1.1	60×0.20	1.2	43×2.0	2.1	35.5	4186.5	0.268
		7/2.52	7	0.9
		7/2.52	7	0.9
4	3×95+1×50	19/2.52	10.7×14.5	1.1	60×0.20	1.2	51×2.0	2.2	41.2	5014.8	0.193
		10/2.52	8.4	1.0
5	3×95+2×50	19/2.52	7.2×19.7	1.1	60×0.20	1.2	49×2.0	2.3	39.8	5415	0.193
		10/2.52	8.4	1.0
		10/2.52	7.1×11.5	1.0
4	3×120+1×70	24/2.52	11.5×17.3	1.2	60×0.20	1.2	54×2.0	2.4	43.9	6040.2	0.153
		14/2.52	10	1.1
5	3×120+2×70	24/2.52	8.0×22.1	1.2	60×0.20	1.4	44×2.5	2.5	45.3	7131	0.153
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×150+1×70	30/2.52	13.2×19.4	1.4	60×0.20	1.4	50×2.5	2.5	50.4	7649.8	0.124
		14/2.52	10	1.1
5	3×150+2×70	30/2.52	9.1×24.3	1.4	60×0.20	1.4	48×2.5	2.6	48.5	8192.8	0.124
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×185+1×95	37/2.52	15.0×22.3	1.6	60×0.20	1.4	56×2.5	2.7	55.8	9248.1	0.0991
		19/2.52	11.6	1.1
5	3×185+2×95	37/2.52	10.2×27.2	1.6	60×0.20	1.4	53×2.5	2.8	53.5	9975.6	0.0991
		19/2.52	11.6	1.1
		19/2.52	9.2×14.7	1.1
4	3×240+1×120	48/2.52	17.7×23.7	1.7	60×0.20	1.6	65×2.5	2.9	63.3	11582.1	0.0754
		24/2.52	13	1.2
5	3×240+2×120	48/2.52	11.5×29.2	1.7	60×0.20	1.6	59×2.5	3.0	58.8	12366	0.0754
		24/2.52	13	1.2
		24/2.52	9.9×16.4	1.2
4	3×300+1×150	61/2.52	19.2×28.3	1.8	60×0.20	1.6	69×2.5	3.0	67.5	13893.9	0.0601
		30/2.52	14.6	1.4
5	3×300+2×150	61/2.52	13.0×33.2	1.8	60×0.20	1.6	65×2.5	3.2	64.4	15088.7	0.0601
		30/2.52	14.6	1.4
		30/2.52	10.6×17.9	1.4
5	4×4+1×2.5	1/2.25	2.25	0.7	20×0.20	1.0	33×1.25	1.8	19	744	4.61
		1/1.78	1.78	0.7
5	4×6+1×4	1/2.76	2.76	0.7	20×0.20	1.0	36×1.25	1.8	20.3	875.3	3.08
		1/2.25	2.25	0.7
5	4×10+1×6	7/1.35	4.05	0.7	20×0.20	1.0	43×1.25	1.8	23.6	1172.2	1.83
		7/1.04	3.12	0.7
5	4×16+1×10	7/1.66	4.98	0.7	25×0.20	1.0	40×1.6	1.8	27	1658.8	1.15
		7/1.35	4.05	0.7
5	4×25+1×16	7/2.14	6.42	0.9	25×0.20	1.0	48×1.6	1.8	31.4	2284	0.727
		7/1.66	4.98	0.7
5	4×35+1×16	7/2.52	7.56	0.9	25×0.20	1.0	52×1.6	1.9	34.2	2791.6	0.524
		7/1.66	4.98	0.7
5	4×50+1×25	10/2.52	5.5×13.4	1.0	55×0.20	1.2	39×2.0	2.1	33.1	3555.6	0.387
		7/2.16	6	0.9
5	4×70+1×35	14/2.52	6.7×15.8	1.1	60×0.20	1.2	45×2.0	2.2	37.1	4599.1	0.268
		7/2.52	7	0.9
5	4×95+1×50	19/2.52	7.7×18.3	1.1	60×0.20	1.2	50×2.0	2.4	41	5895	0.193
		10/2.52	8.4	1.0
5	4×120+1×70	24/2.52	9.5×20.8	1.2	60×0.20	1.4	48×2.5	2.5	48.3	7815.8	0.153
		14/2.52	10	1.1
5	4×150+1×70	30/2.52	10.0×22.9	1.4	60×0.20	1.4	50×2.5	2.7	50.5	9071.7	0.124
		14/2.52	10	1.1
5	4×185+1×95	37/2.52	10.8×25.6	1.6	60×0.20	1.6	55×2.5	2.9	55.5	10990.1	0.0991
		19/2.52	11.6	1.1
5	4×240+1×120	48/2.52	12.6×28.9	1.7	60×0.20	1.6	62×2.5	3.1	61.2	13667.1	0.0754
		24/2.52	13	1.2
5	4×300+1×150	61/2.52	13.8×32.2	1.8	60×0.20	1.6	54×3.15	3.3	67.5	17433.8	0.0601
		30/2.52	14.6	1.4

Company Profile
Packaging & Shipping
FAQ

---

>> A Factory Direct Round 24w Adjustable Frameless Panel Light Led High Smart Led Lamp
>> Plastic Paint Bucket Making Oil Drum Plastic Bucket Handle Injection Molding Machine
>> New High-Performance Power Rake for Skid Steer Loaders Ideal for Soil Grading & Groundwork
>> High Precision Customized SS304/SS316L Multi-Type High Temperature Blind Flange for Plant Projects
>> sell magnesium chloride price MgCl2 powder 46 99% food agent factory
>> High-Precision Tablet Press Machine for Disinfectants
>> Four Wires Hydraulic Hose 4sh/4sp Standard Hose High Pressure Mining Rubber Pipe for General Mining Equipment
>> Animal Husbandry and Green House Exhaust Fan High Quality
>> China Best R22 220V 9000BTU 24 Hours Timer 10000 Btu Portable Air Conditioner
>> Abdominal Fitness Press Device 3 Stage Resistance Adjustment Bodybuilding Machine Core Magic Trainer Equipment Wyz19463
>> Quality Guarantee Portable For Screening Topsoil Compost And Other Materials Mobile Trommel Screen
>> Ceiling Hiddening Screen Alr 4K Laser TV Motorized Projection Screen 100"
>> Mini Drilling Machine Jc28A-2 Jc28A-3 Jc32A Jc38A
>> Hot sale Rear bumper skin rear light bracket L for chevrolet 26272720
>> 0.7MM Gold Metallic Holographic Yarn for Clothing Brand
>> Oxygen Pressure Reducer YQY-06, Gas Pressure Reducing Valve, Voltage Stabilizer, Oxygen Pressure Gauge Manufacturers
>> Shangdong Origin Free Sample Good Tasty Spicy Coated Peanuts
>> waterproof white sliding aluminium doors, modern aluminum folding door, tempered glass aluminium bifold doors
>> white marble makeup brush set with tube synthetic hair
>> Lift Table for Pump Industry
