Product Details
Product Description
Product Description
Factory Capacity & Professionalism And Experience:

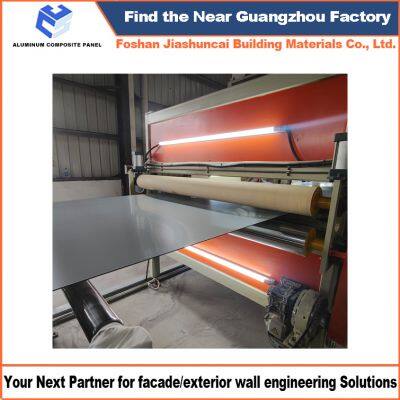

Jiashuncai Factory Can Meet The Needs Of Any Exterior Wall / Facades Aluminum Cladding & Curtain Wall Engineering Project Using Aluminum Composite Panels, Aluminum Panels, and Aluminum Baffle Ceilings.A 30,000m² Factory Equipped With An Advanced Aluminum Composite Production Line, Capable Of Producing 5,000,000m² Per Month
In the past 23 years, Jiashuncai always keeps up with or even ahead of the technical progress in the field of metal ceiling, curtain wall and metal related production.Our engineering team has never stopped searching for better solutions to make our product more reliable and durable.we imported fully automatic product line alignment and precision.
Professional Engineering Solutions Provider:
Professional Engineering Solutions Provider:
（Whether you have a large or small project (100m² Or 100,000m²),We provide complete construction solutions including design, engineering, material selection, fabrication, shipping and installation On site management services providing supervision, scheduling and quality control., 24h/7d technical support is available）
SUPPORT CAD DRAWING DESIGN
(Including exterior and interior CAD drawing design)
ONE-STOP ENINEERING CONFIGURATION
(Rich experience in engineering projects, from production to installation)
INSTALLATION SERVICE
(Own a professional engineering team, support technical on-site service)
Color customization：
Aluminium coils for architecture and industry Our product range of continuous plate aluminium is composed of coils, strips and plates that can reach 2.05 m wide, thus offering a vast range of possibilities in many industrial and building applications.
We work for any sector Thanks to our experience and manufacturing capacity we can meet your needs in any field, as well as adapt to the needs of your product
We have our own colour laboratory with expert colourists to get the exact match you need (RAL, PANTONE and NCS) or to make a custom finish for your project. We created the most complex and striking finishes on the market. Available coatings: PVDF, FEVE, HDPE, HDPU, PE and PURPA
Panel processing：
Machining of composite panels：
Aluminum composite panels can be machined using CNC machinery or manually with a wall saw or portable router. This process allows you to prepare the exact measurement and easily shape the parts to be installed on the façade, using the different certified assembly systems , with visible or hidden fixings, as well as to adapt the panel to a wide variety of other applications. The technical office has specific programs that minimize material waste during machining of parts, minimising cut-offs and waste in the process.
In case you do not have the necessary equipment, our production centre can carry out the machining, punching and die cutting, stamping, edging, bending and forming operations that the project requires.
Composite panel stamping
composite panels can be stamped using CNC machinery. This transformation allows you to add relief and depth to the panel, enhancing the visual appearance of the composite panel. A multitude of designs, patterns, sizes and shapes are possible depending on the shape and size of the tools used.
The print allows you to create custom patterns, textures and designs that add a unique aesthetic look to the building’s façade. They are also used in the manufacture of decorative elements for interiors and exteriors. This includes signage, signals, banners, partition walls and patterned ceiling elements that add a touch of style and sophistication to the space.
Punching and die cutting of the composite panel：
Aluminum composite panels can be punched and die cut with CNC machinery, adapting the design to the needs of each project, obtaining a clean and precise finish. We offer all kinds of shapes and varied perforation patterns, as well as the possibility of reproducing complete images such as point clouds, being able to recreate complex designs using different punching patterns.
Edging composite panel edges：
edging encloses the panel core, protecting it from the weather and giving the façade a cleaner and more professional appearance. We can make three types of edges: Single (hides the edge), double interior (hides the edge and part of the rear face) and double exterior (hides the edge and extends a tab that hides the joints with other panel sheets).
Curving composite panels：
Bending can be executed in concave and convex directions, vertically or horizontally, in pieces with or without tabs (for visible or hidden installation systems).
Forming：
This process can be executed in the workshop or on site, but always in a clean environment, specially protected and adapted for it. The shapes of the cassettes are not only limited to the classic rectangular measures of flat appearance, but can also be executed with 3D shapes
Composition of aluminum Composite panels
Protective filmPaint coatingPrimerAdhesive layerNon-combustible inner layerAdhesive layerPrimerProtective ground coat
Name
| Panel Width | 1220mm,1250mm,1500mm,1550mm,2000mm(maximum) |
| Panel Length | up to 6000mm |
| Standard Size | 1220×2440mm,Customized Accepted |
| Panel Thickness | 2mm,3mm,4mm,5mm,6mm |
| Aluminum Thickness | 0.05mm to 0.50mm |
| Aluminum Alloy | AA1100, AA3003, AA5005 ... |
| Coating | PE Coating,PVDF Coating,NANO |
| PE Core | Recycle PE Core,Fireproof PE Core,Unbreakable PE Core |
| Color | Mirror,brush,Glossy,solid,wooden,marble,soild,Customized Accepted |
| More Serivers | OEM, Free Samples, Color Matching |
Standard Color Or Customized Accepted：
Quality Control (QC) & Product Performance Testing：
Salt-mist Corrosion Tests
High-low Temperature Experiment Machine
Coating Solvent Resistance Determinator
electro-thermal constant-Temperature Dry Instrument
Xenon Test Instrument
Paint Film Adhesive Testing Instrument
Visual Color Different Box
Bending Machine
Boiling Water Testing Instrument
color Deviation Instrument
...etc.
FAQ
