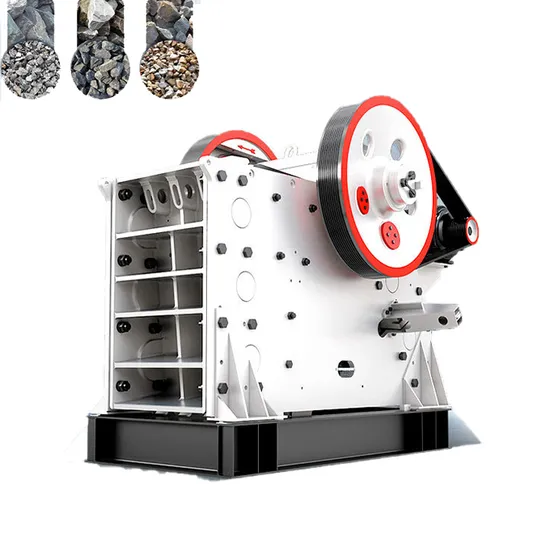

Mini Laboratory Jaw Crusher Machine

US$4,500.00-4,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
7
Type
Jaw Crusher
Application
Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Drive
Electric
Crushing Style
Extruding
Compressive Strength (For Crushing)
250-300MPA
Crushing Degree
Intermediate Crusher
Finished Surface
Cut Off Tool
Certification
CE
Condition
New
Color
White
Feeding Port Size
150X250mm
Max Feed Size
125mm
Discharge Opening Adjustment Range
10-40mm
Capacity
1-3t/H
Eccentric Shaft Speed
250r/Min
Motor Power
5.5kw
Total Weight
0.8t
Transport Package
Wooden Box
Specification
720x660x850mm
Trademark
QT
Origin
China
HS Code
8474100000
Production Capacity
0.8t

Product Description

1.Product Introduction
Jaw crusher is a crusher which is composed of two jaw plates, static jaw and moving jaw, to simulate the movement of animals to complete the material crushing operation.
2.Apply Field
It is widely used in the crushing of various ores and large materials in mining smelting, building materials, highway, railway, water conservancy and chemical industries.
It is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.
Model PE150x250 PE200x300 PE200x350 PE250x400 PE400x600
Feeding Port Size 150x250mm 200x300mm 200x350mm 250x400mm 400x600mm
Max Feed Size 125mm 180mm 180mm 210mm 340mm
Discharge Opening Adjustment Range 10-40mm 15-50mm 18-70mm 20-60mm 40-100mm
Capacity 1-3t 2-6t 3-10t 5-20t 16-60t
Eccentric Shaft Speed 250r/min 260r/min 260r/min 300r/min 275r/min
Power 5.5kw 7.5kw 11kw 15kw 30kw

weight		 0.8 1.2t 1.5t 2.8t 7t
