Basic Info.
Feature
Touch Display, LED Backlight Display
Optimum Resolution
1920x1080
Low Blue Light Mode
Support
AC Power Range
5-20V; 1.5A-3A
Power Indicator Light (on)
Blue Light
Inner Bag/Handbag
Inner Bag
Transport Package
Color Box
Specification

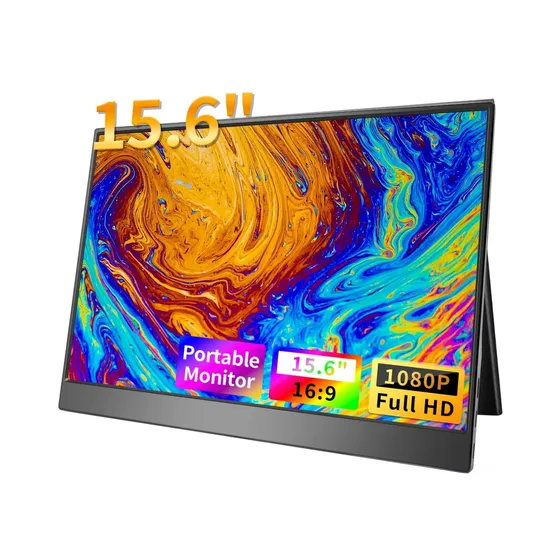

15.6inch Touch Portable Monitor
Packaging & Delivery
Package Size
41.00cm * 29.00cm * 7.00cm
Package Gross Weight
3.300kg
Product Description
Product Parameters We are a production manufacturer and can provide you with special customized services for OEM&ODM.
| Model Name | | B156-CHF06B6 |
| Description | | 15.6inch Ultra Narrow Frame Portable Monitor |
| LCD Panel | Panel Display Size | 15.6inch |
| Panel Surface | Anti-Glare,Hard coating |
| Panel Type | ADS-IPS |
| Resolution (H x V) | 1920*1080 |
| Refresh Rate | 60Hz |
| Color | 262K (6-bit) 47% NTSC,62%SRGB |
| Brightness | 250cd/m2 |
| Aspect Ratio | 16:09 |
| Contrast(Typical) | 800:1 |
| View Angles | 85° /85°/85° /85° |
| Response Time(Typical) | 30ms |
| Operation Features | 10-point Multi-touch Function | NO |
| Thunderbolts Type C Phone MHL Function(Samsung S8 Serie, Huawei Mate Serie, P30 Serie, Smartisan, Oneplus 7Plus etc.) | Support |
| Thunderbolts Type C Connection (Nintendo Switch, Macbook Pro, iMac etc.) | Support |
| HDMI-Compatible Connection(PS4/PS5/Xbox/TV-box/Digital camera/PC/Laptop etc.) | Support |
| Adaptive Sync (freesync) | TYPE-C 3.1 1920*1080P@60hz |
| Adaptive Sync (freesync) | HDMI 1.4 1920*1080P@60hz |
| HDCP | 1.4 |
| HDR | HDR 10 |
| Low Blue Light Mode | Support |
| Display Color Option | WARM/COOL/USER |
| Display Mode | STANDARD/GAME/MOVIE/TEXT/FPS/RTS |
| Interfaces | Mini HDMI | HDMI 1.4 1920*1080 60Hz |
| Type C Data | TYPE-C 3.1 1920*1080 60Hz |
| Type C PD | PD Protocol Charge |
| Micro USB | NO |
| 3.5mm Earphone Port | YES |
| Speaker | 8Ω2w*2 |
| VESA Hole | NA |
| Operation Menu | Front Control | Power On/Off,Menu,Up,Down |
| OSD Display Language | ENGLISH, ESPANOL, Japanese, FRANÇAIS, PORTUGUES, Korean, DEUTSCH, TURKCE, Chinese, POLSKI, ITALIANO, NEDERLANDS |
| Power Detail | Consumption(Max) | 15W |
| Consumption(Typical) | 10W |
| Consumption(Sand by) | 0.5W |
| Consumption(Power off) | 0 |
| AC Power Range | 5-20V; 1.5A-3A |
| Power Indicator Light (ON) | Blue Light |
| Power Indicator Light (stand by) | Red Light |
| Power Indicator Light (OFF) | NA |
Operating
Condition | Temperature | 0ºC ~ 50ºC |
| Humidity | 20% ~ 80% |
| Packge Accessories | Type-C to Type-C Cable(Full-Featured) | 1 |
| Type-C to Type-C Cable(Only Power) | 1 |
| USB-A to Type-C Cable | NO |
| HDMI to Mini HDMI Cable | 1 |
| Micro USB OTG Cable | NA |
| Inner bag/Handbag | 1 |
| Power Adapter | 1 |
| User Manual | 1 |
Q1: Are You Manufacturer ?What Do You Mainly Supply With? A1:Yes, We Are 23YEARS +Touch Solution Provider,Our main products are Manufacturer for Industrial touch monitor,industrial display ,panel PC ,all in one pc, portable monitor.
Q2: How''s the quality ?
A2: We are the original factory of the brand "Bolinia",All our products are patented and certified. we have our own R&D team and all our products are manufactured at our own factory with extremely quality control system.
Q3: What payment methods your company accept ?
A3: We accept most of the payment methods,mainly accept T/T ,VTB,PAYPAL, Made-in-China assurance trade payment.
Q4: I haven''t done business with you guys before,how can i trust your company ?
A4: We hold our own "Bolinia" brand,and also sell on various of famous retail platform,it''s quite easy for you to search our brand and review the feedback on line. what''s more,we''ve got quite a lot authority certificates,for example,FCC,CE,UR, RoHS,ISO9001. I hope those above will be persuasive enough.
Q5:Can You Provide OEM&ODM Special Customized Service?
A5:Of Course , Including Software, Packaging, Product Logo, ETC, Consult Customer Service For More Details.
Q6: Do you give any discount ?
A6: I''ll surely try my best to help you get those by the best price and good service at the same time.
Q7: What's your warranty?
A7: All of our products share 12 months warranty, On-line service and additional accessories supported.(Except for human factors)
>>
