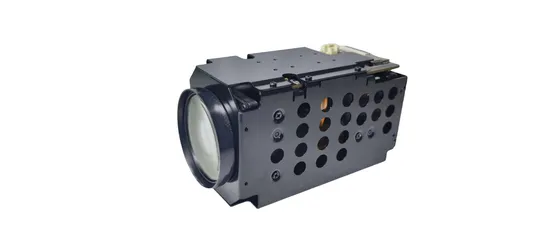

2MP 38X Super Starlight (HDMI+IP) Sony Sensor Zoom Module Block Camera Module CCTV Camera Security Camera Thermal Camera

Product Description

Product Description
H.265, 2MP, 1920×108038X Optical, 6.5-247mm optical zoom, 16X digital zoomSuper starlight, 120dB WDRSupport low Illumination, 3D DNR, 3D potionSupport SD card (256G)Support Three streamSupport 500 presets, 8 cruise scanSupport audio 1/1, alarm 1/1 Easy connect to zooming camera, PTZ and platform Multiple protocol/ interface, Open SDK, Function extensionSupport OEM/ODM and Customization serviceDimension
Specifications

Model	IPZM-8238-H
Camera	Sensor	1/1.8" Progressive Scan CMOS
	Resolution	2MP
	Low illumination	Color:0.0005 Lux @(F1.5,AGC ON); B/W:0.0001Lux @(F1.5,AGC ON)
	S/N ratio	>55dB
	D/N mode	Auto ICR, auto, color, B/W
Lens	Zoom times	f =6.5-247mm ,38X optical,16X digital
	Aperture	Max aperture:F1.5~F4.8
	Shutter	1/25-1/100,000s;support slow shutter
	FOV	64.8°-1.8°(wide-tele.)
	Min. Distance	100mm-1500mm(wide-tele.)
Encoding	Video encoding	H.265 / H.264,H.265+/H.264+
	H.265	BaseLine Profile / Main Profile / High Profile
	H.264	BaseLine Profile / Main Profile / High Profile
	Video encoding rate	64Kbps~16Mbps
	Audio encoding standard	G.711A/G.711U/G.726/AAC
	Audio encoding rate	16Kbps(G.711)/ ( G.711U )/ (G.726)/(AAC)
Image	Main stream	50Hz: 25fps (1920 × 1080,1280 × 720); 60Hz: 30fps (1920 × 1080,1280 × 720);
	Second stream	50Hz: 25fps(720×576,352×288); 60Hz: 30fps(720×576,352×288)
	Third stream	50Hz: 25fps(1280 × 720,720×576,352×288); 60Hz: 30fps(1280 × 720,720×576,352×288)
	Image setting	Brightness, contrast, saturation, sharpness, chroma, adjustable through browser
	BLC	Support
	HLC	Support
	Exposure	Auto Exposure/Manual Exposure/Anti Drag/Low Priority/High Priority/Aperture Priority/Shutter Priority/Lock Mode
	Focus	Auto focus/manual focus/semi-automatic focus
	Area focus	Support
	Optical defog	Optional
	Electronic anti-shake	Support
	D/N shift	Automatic, manual, image algorithm, timing, serial trigger
	3D DNR	Support
	Picture Overlay	Support
	Permeability	Auto, area setting
	ROI	4 areas
	Smart functions	Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection
Internet functions	Storage	Micro SD/SDHC /SDXC(256G) offline local storage, NAS, NFS, SMB/CIFS
	Internet Protocol	TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE
	Protocol	ONVIF
Interface	Internet interface	36pin FFC (RJ45,RS485,RS232,SDHC,Alarm In/Out,Line In/Out,Power)
	Interface	HDMI
General spec.	Working Temp.	-30ºC~60ºC, humidity<95%(Non-Condensing)
	Power supply	DC12V±10% , 2A
	Consumption	2.5W (4.5W MAX)
	Size	124.6*56*66mm
	Weight	419g

Applications
Production
Shipping
FAQ
Q: 1. Support sample order?Yes, we support sample order for customer to test before bulk order place with client paying for the basic sample cost and shipping cost..
Q: 2. What is the lead time?For sample order: 3-5days, for bulk order: 3-5 weeks.The specific delivery time depends on the items and the quantity of your order.
Q: 3. Do you have any MOQ limit?No MOQ limit for sample order. For bulk order with customized service, there will be MOQ limit, which we can discuss by case.
Q: 4. How do you ship the goods and how long does it take arrive?For sample order, usually we schedule shipment by DHL, Fedex, UPS or TNT.For bulk order, usually we schedule shipment by air, by sea or by train, and client appointed forwarder and shipment is accepted.
Q: 5. What is the warranty for the products?Our standard warranty is 2 years, and we agree to extend warranty period with reasonable cost.
Q: 6. How is your after-selling service?For after-selling service, we will offer free technical training, 24/7 online technical support, and product return for fix service.
Q: 7. Do you supply OEM service?Yes, we are professional OEM/ODM manufacturer and can meet all customized services.
Q8. What is your terms of packing?A: Generally, we pack our goods in neutral color boxes and brown cartons. We can also support to design and print your logo on box and carton.
Q9. What is your terms of payment?A: Usually T/T 30% as deposit, and 70% before delivery. We can accept PayPal and West Union for sample order as well.
Q10. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery

---
