Light Weight Th Series Hollow Hydraulic Cylinder for CNC Lathe

Product Description

Product Description

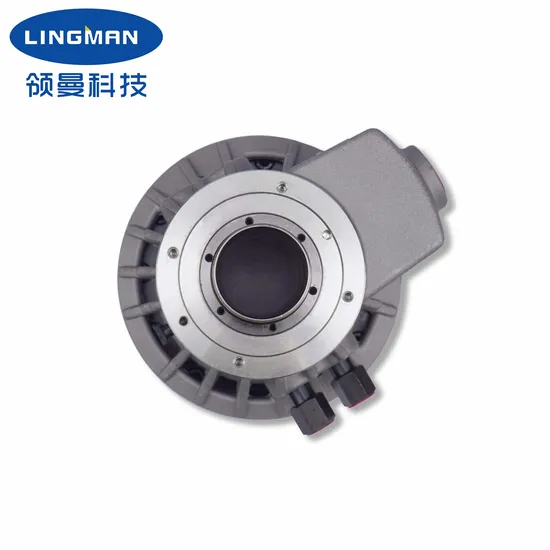

Hollow Type TH Series Hydraulic Rotary Cylinder for CNC Lathe
This product is lightweight, large through-hole type rotary cylinder, with through-hole through, which can process long shaft parts. The built-in self-locking mechanism of the check valve can prevent the damage of the piping and the loss of the pressure source, and ensure the stable clamping of the workpiece. The cylinder is safe and reliable, high speed, long life, the internal parts are all imported originals. And this kind of product can be customized according to customers' different requirements.


Detailed Photos

Product Parameters

Product Parameter
Product model	TH-646
Push Side	97.3cm2
Pull Side	87.9cm2
Stroke	15mm
Max. number of revolutions	7000r.p.m
Max. working pressure	4.0 Mpa
GD2	0.09 KG.M2
Net weight	13.5Kg

Specifications	A	B	C	D	E	F	H	J
TH-646	125	169	156	130	100	65	60	135.5

Company Profile
Lingman Machinery Technology (ChangZhou)Co;Ltd
Located in Changzhou CIty, Jiangsu Province, Lingman Machinery Technology(Changzhou) Co.,Ltd. . is an enterprise focusing on R&D, production and sales of various pneumatic chucks, electric chucks. hydraulic chucks and other power chucks. With production
equipment and innovative design capabilities, it can provide users with satisfactory service. It also can design and produce various types of machine tools, non-standard equipment, and special power fixtures and chucks for laser pipe cutting machines according to different users' needs. The company is based on technological innovation to provide every customer with suitable products, caring services, continuous technology research and development, fully implement quality management, continue to improve the service system, and look forward to winning new and old customers favor.
Looking forward to be your Chinese partner in chuck business!


Our Advantages

a. Full stroke designed laser chuck

b. Wide range of applications, diversification of processing profiles

c. High repetitive positioning accuracy

d. Low maintenance cost, long service life

e. Multiple configurations are available e. 1 Solid or hollow e. 2 Comb-type or mortise-groove type claws

FAQ
1. Can we visit your company to inspect products before delivery?
You are welcome to visit our company to inspect us and our products.
2. What's your lead time?
Within 15-35 days after confirming the order.
3.What can you buy from us?
Single bearing full stroke double-acting chuck, pneumatic connecting rod four-jaw double-action chuck, full-stroke double-action chuck, leveraged hollow(solid) four-jaw double-acting feeding chuck, double-acting chuck for professional pipe cutting machine, etc.
4. Why should you buy from us not from other suppliers?
a.We are the direct factory with good price and fast lead time.
b.Professional design team work with you.
c.Professional QC team to guarantee the high quality.
d.Providing OEM & ODM service.
5.What are your payment terms?
T/T, L/C, West Union, Paypal, etc.

---
